Callout |
Component Name |
|---|---|
|
1 |

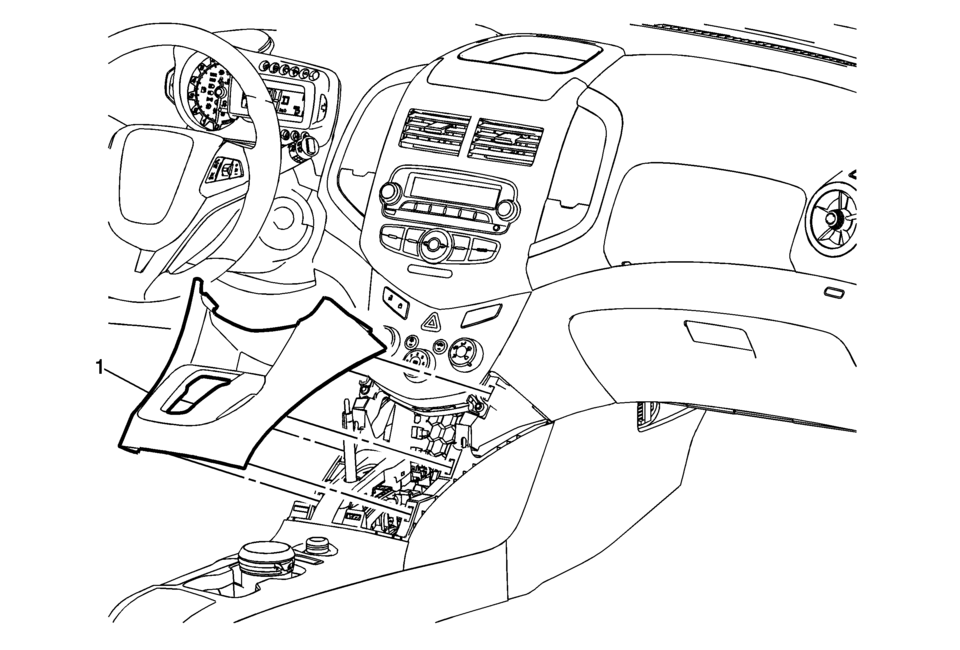

Front Floor Console Cover Assembly Procedures
|
Front Floor Console Bracket Replacement
Front Floor Console Cover Replacement (Manual Transmission)Rear Brake Hose Replacement (Body to Axle - Disc Brake)
Removal Procedure
Warning: Refer to Brake Dust Warning.
Warning: Refer to Brake Fluid Irritant Warning.
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal
and Install ...
Camshaft Position Actuator Adjuster Installation
Special Tools
EN-6340 Camshaft Adjuster Locking Tool
EN-6628-A Camshaft Locking Tool
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Note: Note the arrows.
Turn the camshaft by the hexagon until the groove on the end of the camshafts
is ...
Timing Belt Upper Front Cover Replacement
Timing Belt Upper Front Cover Replacement
Callout
Component Name
1
Timing Belt Upper Front Cover Fastener (Qty: 2)
Caution: Refer to Fastener Caution.
Tighten
6 Y (53 lb in)
...
