Chevrolet Sonic Repair Manual: Front Floor Console Cover Replacement (Manual Transmission)

Chevrolet Sonic Repair Manual / Body / Body Interior / Center Console / Front Floor Console Cover Replacement (Manual Transmission)

Removal Procedure

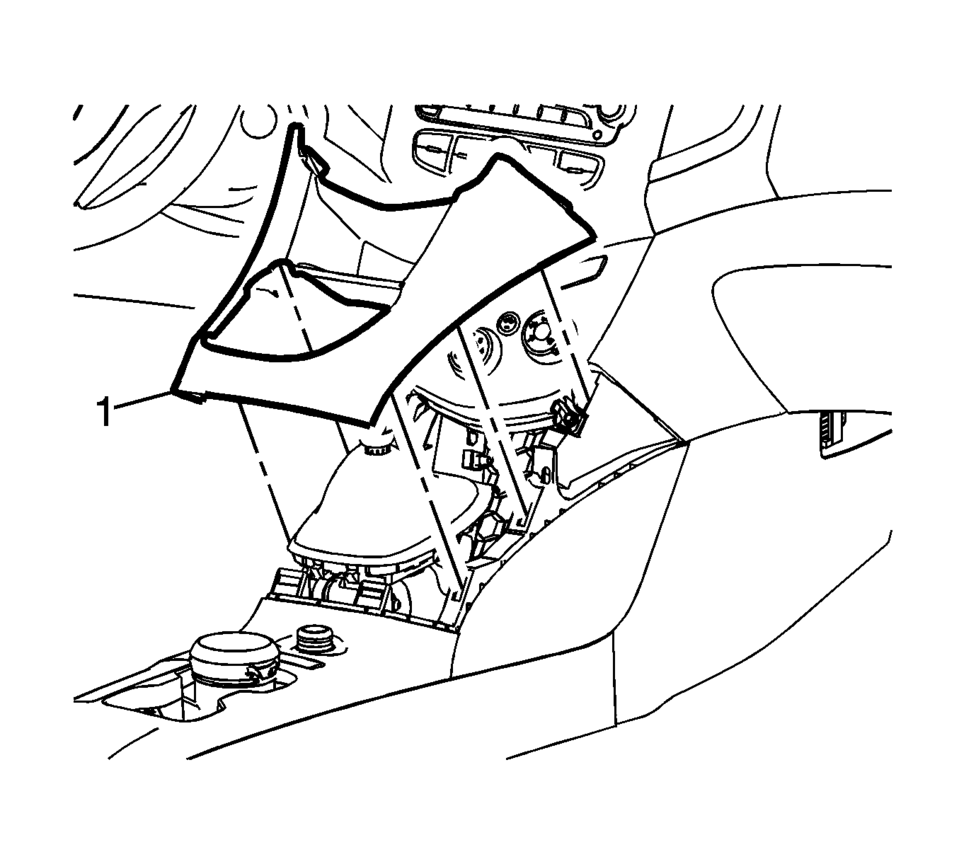

    Use a flat bladed plastic trim tool in order to release the retainers
  1. Use a flat bladed plastic trim tool in order to release the retainers securing the console cover?€‰(1) to the console assembly.

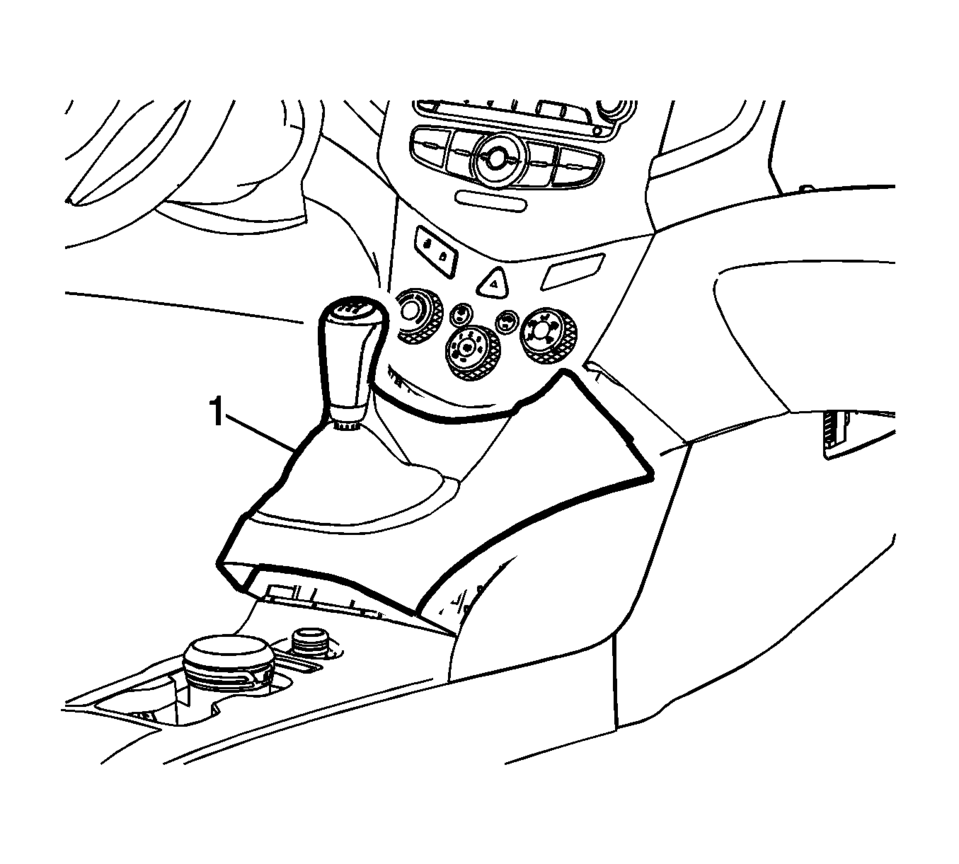

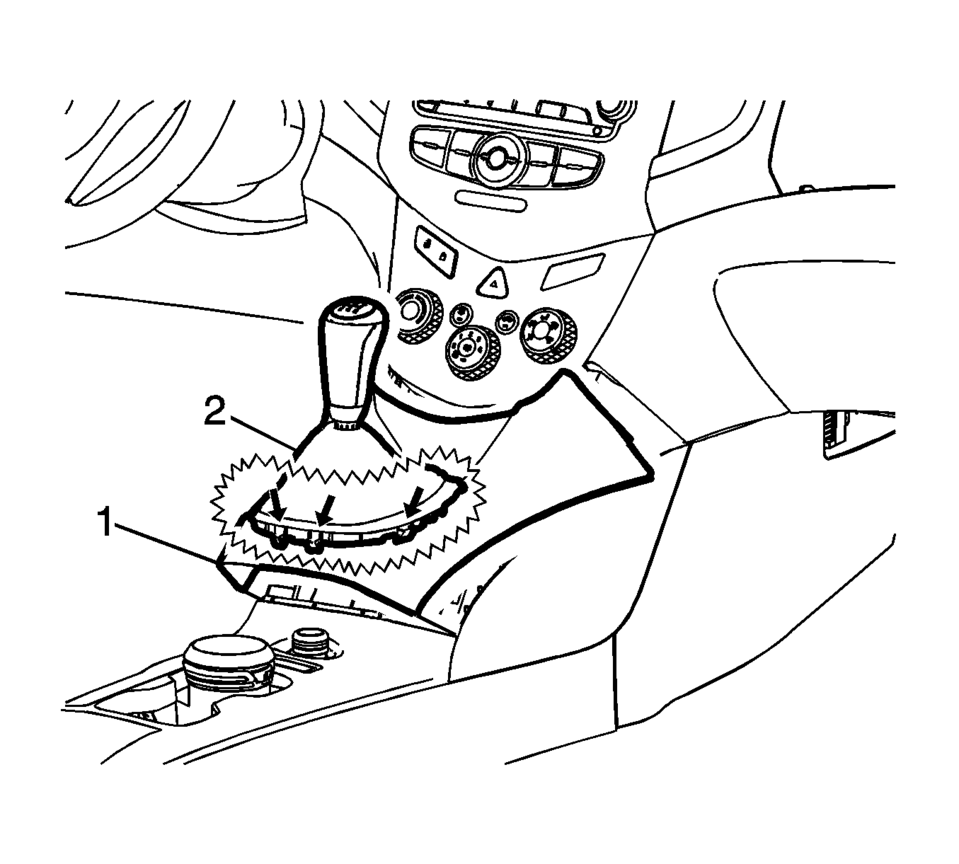

  2. Reach under the console cover assembly?€‰(1) and release the retainer tabs securing the transmission shift lever boot?€‰(2) to the console cover assembly.

  3. Feed the transmission control lever boot assembly thru the opening in the console cover assembly?€‰(1).
  4. Remove the console cover assembly?€‰(1) from the vehicle.
Installation Procedure

    Position the console cover assembly?€‰(1) to the console assembly.
  1. Position the console cover assembly?€‰(1) to the console assembly.
  2. Feed the transmission control lever boot assembly thru the opening in the console cover assembly?€‰(1).

  3. Snap the transmission control lever boot assembly?€‰(2) to the console cover?€‰(1) ensuring the retainer tabs lock the boot assembly to the cover.
  4. Install the cover assembly to the console.
Front Floor Console Cover Replacement (Automatic Transmission)
Front Floor Console Cover Replacement Callout Component Name 1 Front Floor Console Cover Assembly Procedures Appl ...

Front Floor Console Cup Holder Replacement
Front Floor Console Cup Holder Replacement Callout Component Name Preliminary Procedure Remove the front floor console assembly ...
