Chevrolet Sonic Repair Manual: Front Fog Lamp Bulb Replacement

Chevrolet Sonic Repair Manual / Body / Body Electrical / Lighting / Bulbs / Front Fog Lamp Bulb Replacement



Front Fog Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

  1. Remove either the left front or right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement.
  2. Disconnect the electrical connector to the fog lamp bulb.

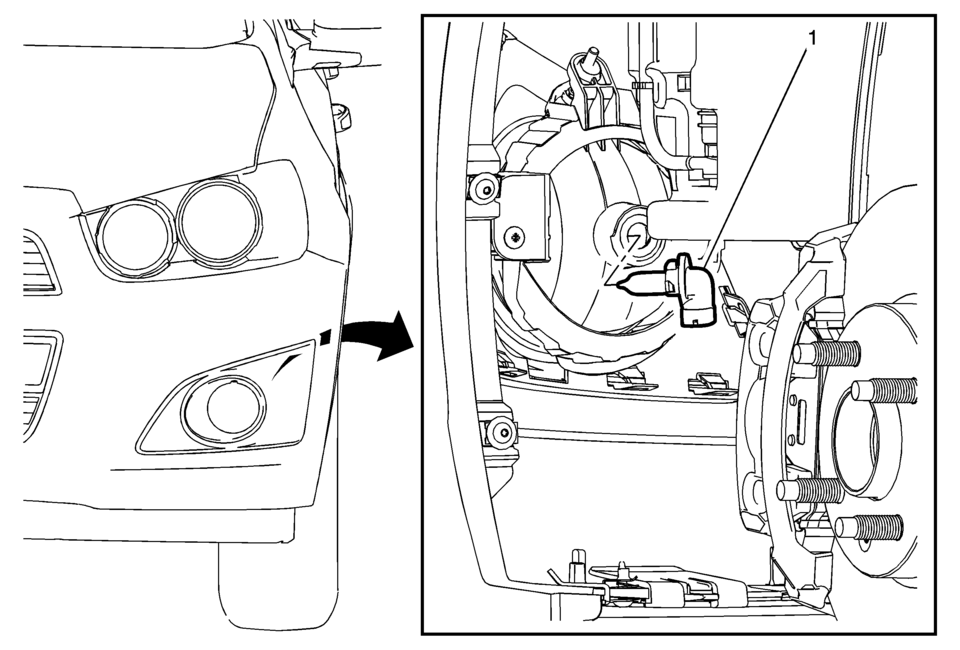

1

Front Fog Lamp Bulb

Warning:

Refer to Halogen Bulb Warning.

Procedure

Turn the fog lamp bulb socket counter-clockwise and remove from the fog lamp housing.
