Chevrolet Sonic Repair Manual: Front License Plate Bracket Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure

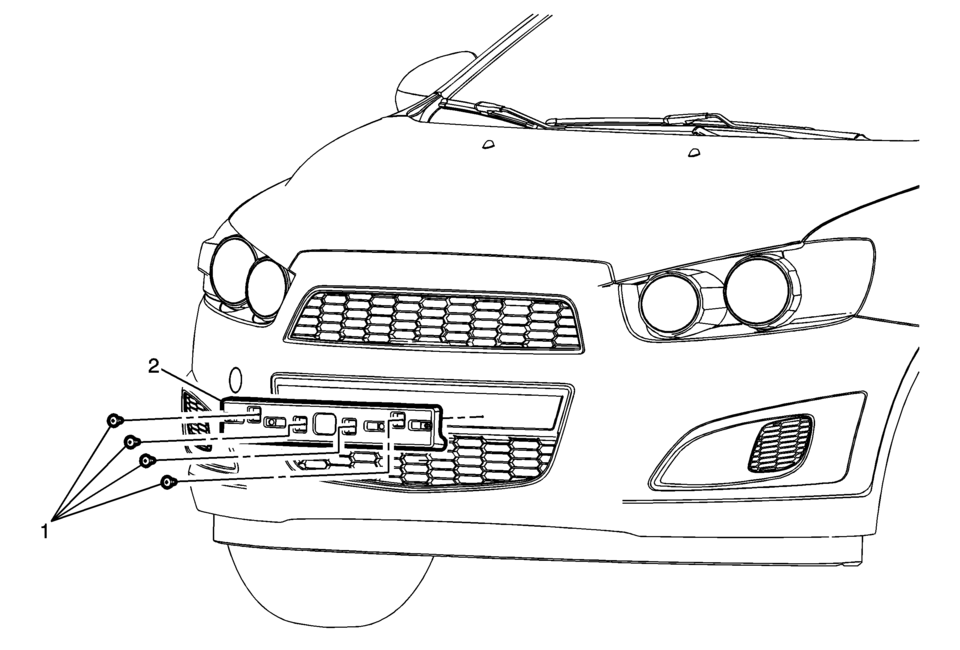

Remove the front license plate if equipped. |
|
|
1 |
Front License Plate Bracket Screw (Qty:?€‰4) Caution: Refer to Fastener Caution.
1.5?€‰Y (13?€‰lb?€‰in) |
|
2 |
Front License Plate Bracket |
