Chevrolet Sonic Repair Manual: Front Seat Belt Anchor Plate Tensioner Replacement
|

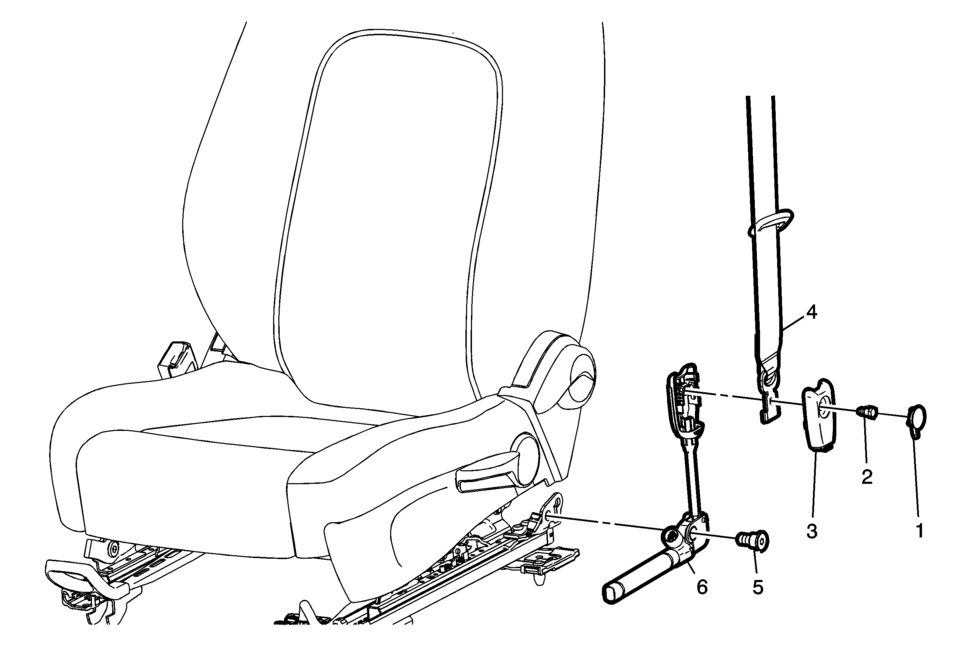

Callout |
Component Name |
|---|---|
|
Warning: Refer to SIR Warning. Warning: In order to prevent accidental deployment and the risk of personal injury, do not dispose of an undeployed inflatable restraint seat belt pretensioner as normal shop waste. Undeployed seat belt pretensioners contain substances that could cause severe illness or personal injury if their sealed containers are damaged during disposal. Use the following deployment procedures to safely dispose of an undeployed seat belt pretensioner. Failure to observe the following disposal methods may be a violation of federal, state, or local laws.
|
|
|
1 |
Driver or Passenger Seat Belt Tensioner Cover |
|
2 |
Driver or Passenger Seat Belt Tensioner Cover Fastener Caution: Refer to Fastener Caution
7.5?€‰Y?€‰(66?€‰lb?€‰in) |
|
3 |
Driver or Passenger Seat Belt Tensioner Cover |
|
4 |
Driver or Passenger Seat Belt Tensioner Seat Belt Latch Procedure
Remove the seat belt with latch from front seat belt tensioner. |
|
5 |
Driver or Passenger Seat Belt Tensioner Fastener Tighten
45?€‰Y?€‰(33?€‰lb?€‰ft) |
|
6 |
Driver or Passenger Seat Belt Tensioner Assembly Procedure
Disconnect the electrical connector. |
Front Seat Belt Anchor Plate Tensioner Cover Replacement (4 Way)
Front Seat Belt Anchor Plate Tensioner Cover Replacement
Callout
Component Name
1
Driver or Passenger Seat Belt Tensione ...
Front Seat Belt Buckle Replacement
Front Seat Belt Buckle Replacement
Callout
Component Name
Preliminary Procedures
Remove the front seat. Refer to Driver or Pass ...
