Chevrolet Sonic Repair Manual: Front Seat Belt Buckle Replacement
|

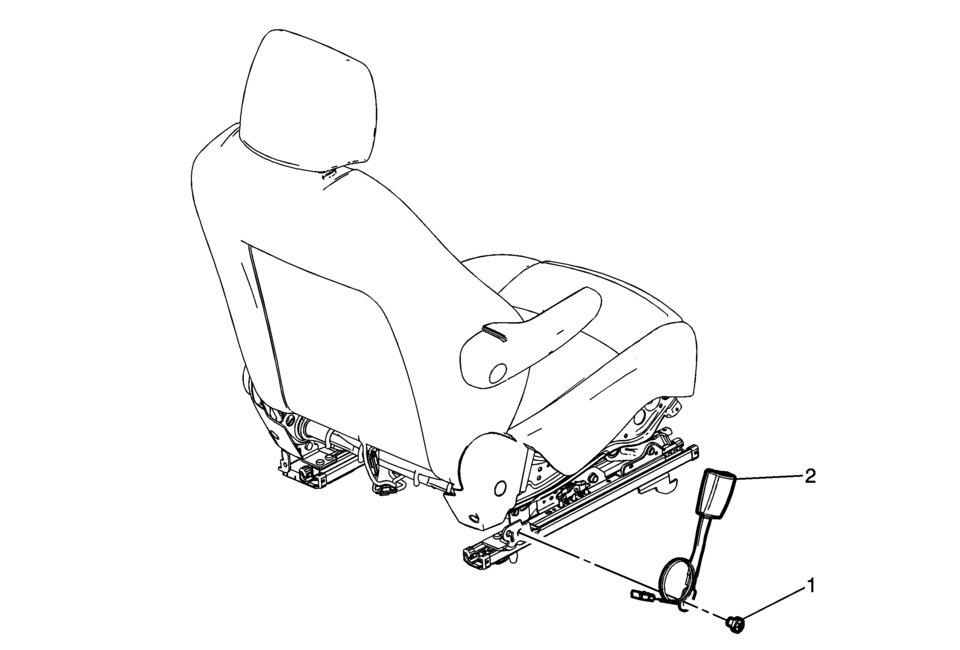

Callout |
Component Name |
|---|---|
|
Preliminary Procedures
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation. |
|
|
1 |
Driver or Passenger Seat Belt Buckle Fastener Caution: Refer to Fastener Caution.
45?€‰Y?€‰(33?€‰lb?€‰ft) |
|
2 |
Driver or Passenger Seat Belt Buckle Assembly Procedure
Disconnect the electrical connector, if equipped. |
Front Seat Belt Anchor Plate Tensioner Replacement
Front Seat Belt Anchor Plate Tensioner Replacement
Callout
Component Name
Warning: Refer to SIR Warning.
Warning: ...
Front Seat Belt Guide Adjuster Replacement (with AHU)
Front Seat Belt Guide Adjuster Replacement
Callout
Component Name
Preliminary Procedures
Remove the center pillar upper trim pa ...
