Chevrolet Sonic Repair Manual: Front Side Door Lock Cylinder Opening Cover Replacement

Chevrolet Sonic Repair Manual / Body / Doors and Enclosures / Doors / Front Side Door Lock Cylinder Opening Cover Replacement



Front Side Door Lock Cylinder Opening Cover Replacement

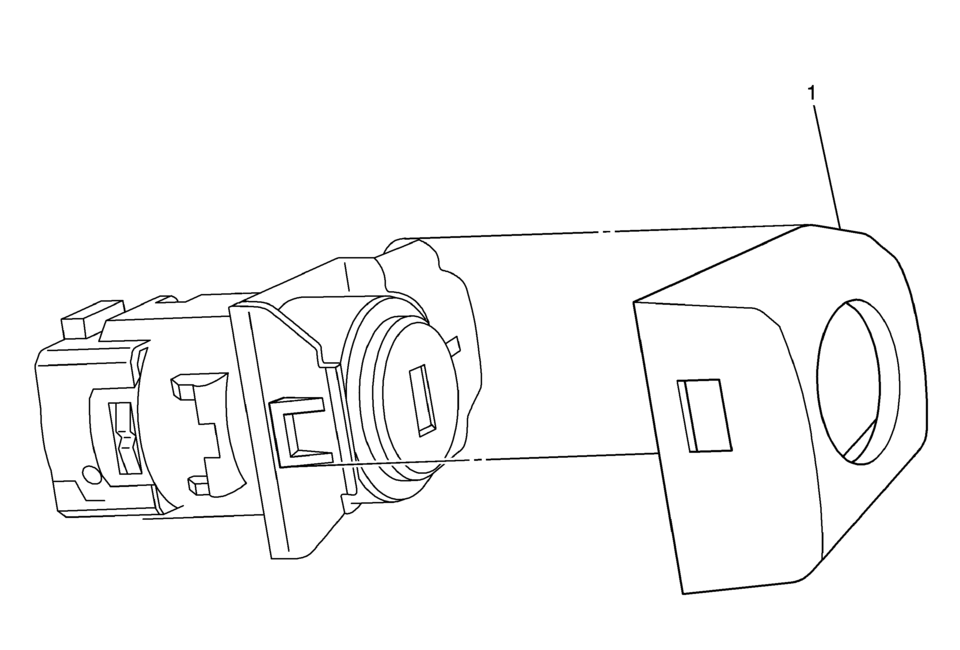

Callout

Component Name

1

Front Side Door Lock Cylinder Opening Cover

Procedure

  1. Remove the front side door lock cylinder, Do Not remove the outside door handle. Refer to Front Side Door Lock Cylinder Replacement.
  2. Do Not remove the lock cylinder screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder.

Tip:

Use a small flat-bladed tool to release the lock cylinder bezel retainers location on both sides.
