Front Side Door Upper Hinge and Lower Hinge Replacement

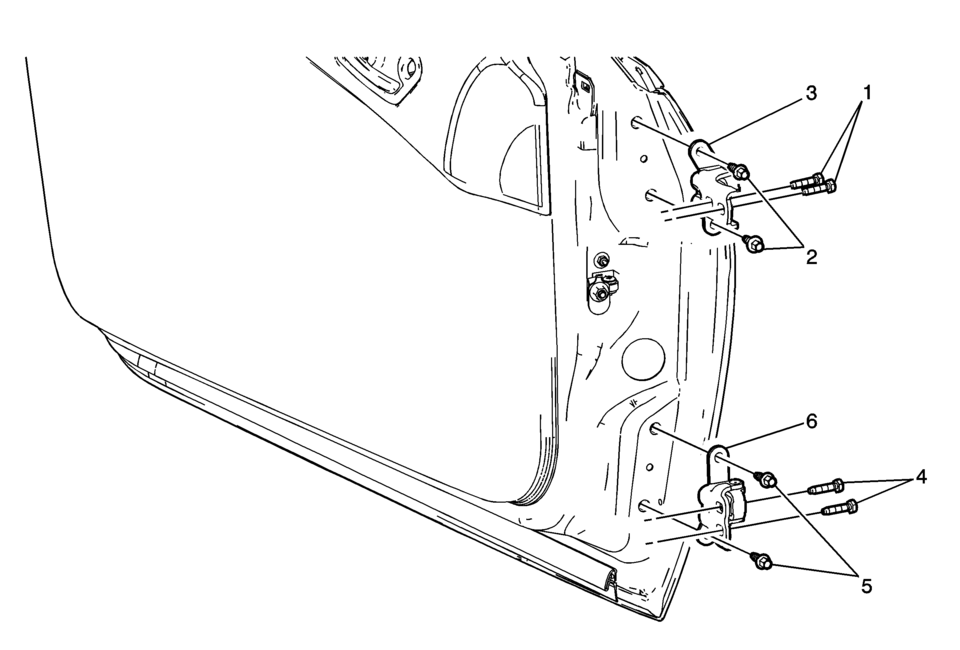

Callout

Component Name

1

Front Side Door Upper Hinge to Body Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Procedures

  1. Before removing the door, apply a double layer of masking tape around the perimeter of the painted surfaces.
  2. Mark the location of the hinge being removed.
  3. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement.
  4. Support the door before removing the hinge bolts.
Tighten


32?€‰Y (24?€‰lb?€‰ft)

2

Front Side Door Upper Hinge to Door Bolt (Qty:?€‰2)

Tighten


25?€‰Y (18?€‰lb?€‰ft)

3

Front Side Door Upper Hinge

4

Front Side Door Lower Hinge to Body Bolt (Qty:?€‰2)

Tighten


32?€‰Y (24?€‰lb?€‰ft)

5

Front Side Door Lower Hinge to Door Bolt (Qty:?€‰2)

Tighten


25?€‰Y (18?€‰lb?€‰ft)

6

Front Side Door Lower Hinge

Procedure

If the door striker needs adjust. Refer to Front Side Door Lock Striker Adjustment.
