Front Side Door Weatherstrip Replacement - Door Side

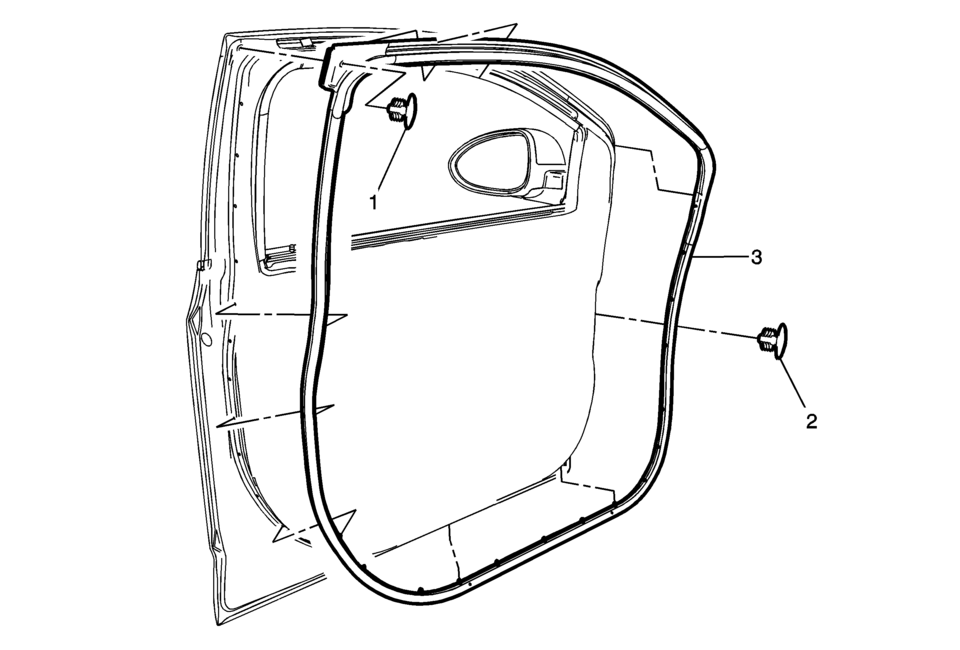

Callout

Component Name

1

Front Side Door Weatherstrip Upper Retainer

Procedure

  1. Open the front side door to the fully open position.
  2. Remove the front side door check link bolt from the body side only . Refer to Front Side Door Check Link Replacement.
  3. Use a suitable tool, remove the push-in retainer from the upper rear corner of the door.
  4. Pull the weatherstrip out of the door retainer.

2

Front Side Door Weatherstrip Retainers (Qty?€‰:21)

3

Front Side Door Weatherstrip

Procedure

  1. Ensure that the weatherstrip is fully seated in the door frame retainer.
  2. Verify proper door operation.
