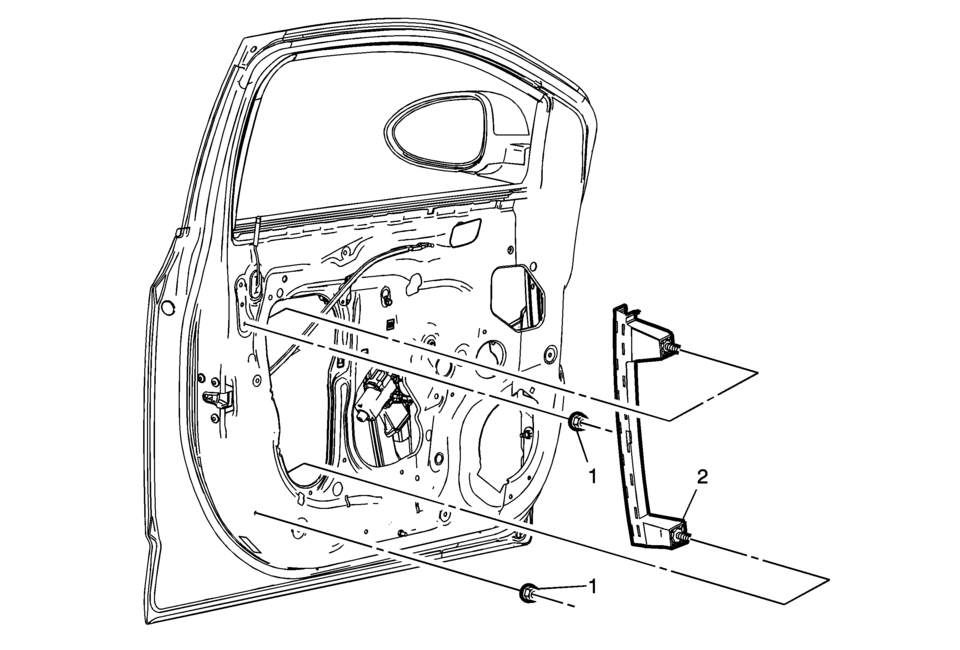

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement. |
|
|
1 |
Front Side Door Window Rear Guide Nut (Qty?€‰:2) Caution: Refer to Fastener Caution.
11?€‰Y (97?€‰lb?€‰in) |
|
2 |
Front Side Door Window Rear Guide Tip: Inspect the window for proper operation before installing the trim panel. |
Front Side Door Window Outer Sealing Strip Replacement
Front Side Door Window Regulator Handle ReplacementInstrument Panel Upper Trim Panel Replacement - Left Side
Instrument Panel Upper Trim Panel Replacement - Left Side
Callout
Component Name
Preliminary Procedure
Remove the instrument cluster assembly. Refer to Instrument Cluster
Replacement.
Remove the instrument panel center mo ...
Battery Positive and Negative Cable Replacement
Removal Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable
Disconnection and Connection.
Remove the fuse block and battery positive cable cover.
Remove the battery tray. Refer to Battery Tray Replacement.
Remove the battery posit ...
Engine Coolant Fan Shroud Replacement (LUV)
Engine Coolant Fan Shroud Replacement
Callout
Component Name
Preliminary Procedures
Drain the engine coolant. Refer to Cooling System Draining and Filling.
Remove the radiator surge tank. Refer to
Remove the radiator s ...
