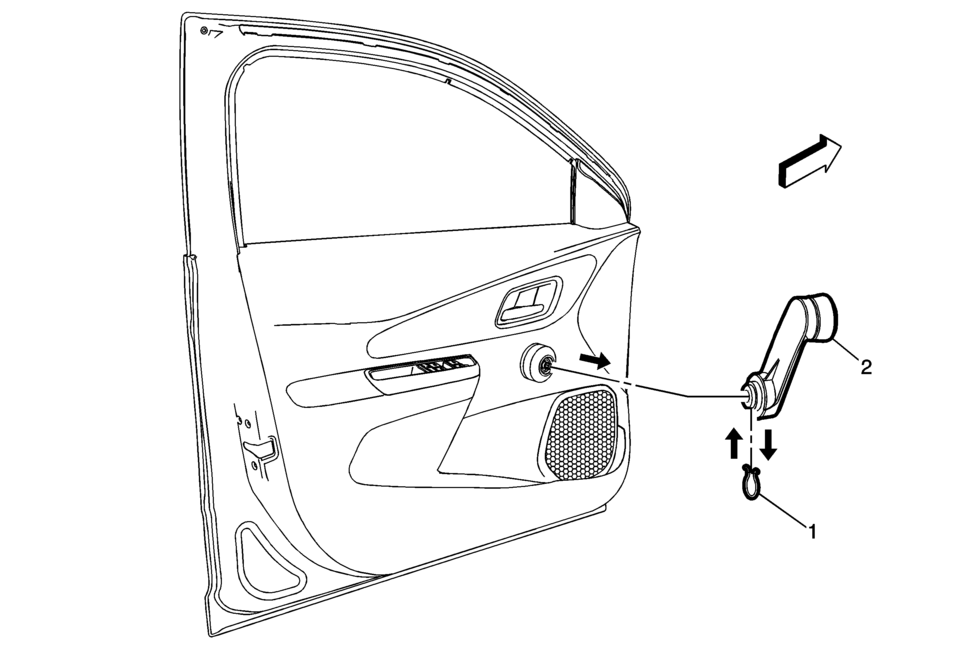

Callout |
Component Name |
---|---|
1 |
Front Side Door Window Regulator Handle Clip Procedure
Use the appropriate tool, remove the clip from handle. |
2 |
Front Side Door Window Regulator Handle |
