Chevrolet Sonic Repair Manual: Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde)

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Wheel Well Liner (Splash Shields) / Front Wheelhouse Liner Inner Front Extension Replacement (Left SIde)

Front Wheelhouse Liner Inner Front Extension Replacement

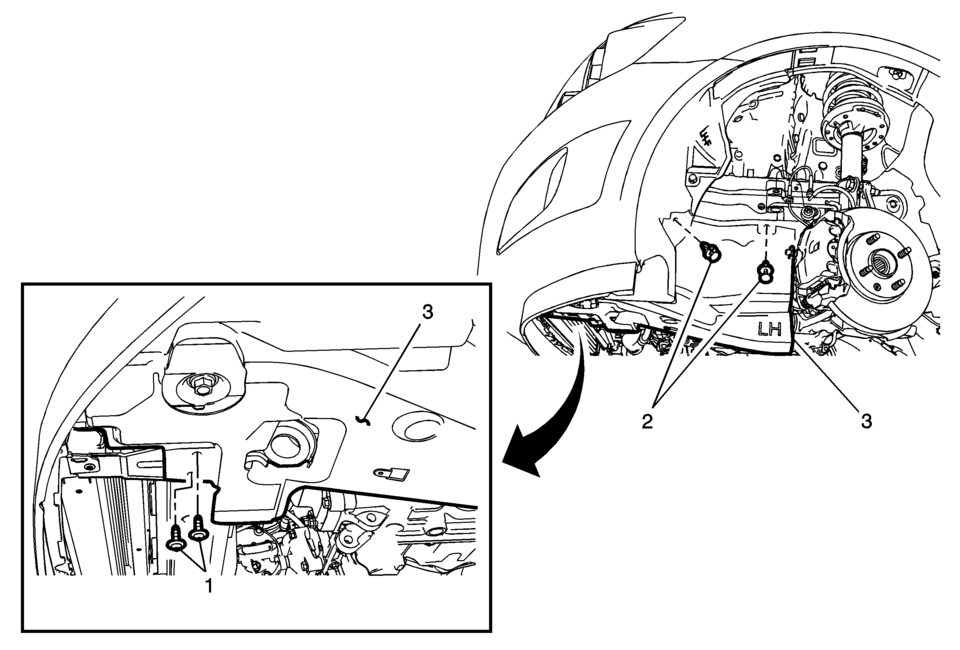

Callout	Component Name
Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
1	Front Wheelhouse Liner Inner Front Extension Screw (Qty:?€‰2) Caution: Refer to Fastener Caution. Tighten 3?€‰Y (27?€‰lb?€‰in)
2	Front Wheelhouse Liner Inner Front Extension Push-In Retainer (Qty:?€‰2)
3	Front Wheelhouse Liner Inner Front Extension

Wheel Well Liner (Splash Shields)

...

Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW)

Front Wheelhouse Liner Inner Front Extension Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel ass ...
