Chevrolet Sonic Repair Manual: Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LUV)

Chevrolet Sonic Repair Manual / Body / Frame and Structure / Front Wheelhouse Liner Inner Front Extension Replacement (Right Side, LUV)



Front Wheelhouse Liner Inner Front Extension Replacement

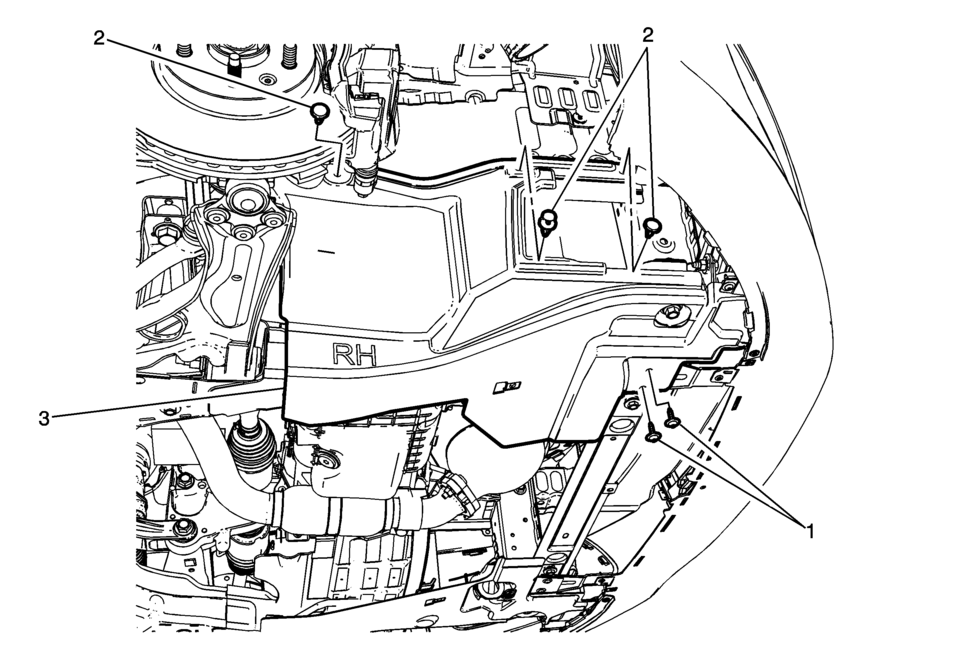

Callout

Component Name

Preliminary Procedure

  1. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.
  2. Remove the front fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement.
  3. Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement

1

Front Wheelhouse Liner Inner Front Extension Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


3?€‰Y (27?€‰lb?€‰in)

2

Front Wheelhouse Liner Inner Front Extension Push-In Retainer (Qty:?€‰3)

3

Front Wheelhouse Liner Inner Front Extension

Front Wheelhouse Liner Inner Front Extension Replacement (Right SIde, LWE, LUW)
Front Wheelhouse Liner Inner Front Extension Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel ass ...

Front Wheelhouse Liner Replacement (Front)
Front Wheelhouse Liner Replacement Callout Component Name Preliminary Procedure Remove the tire and wheel assembly. Refer to Ti ...
