Chevrolet Sonic Repair Manual: Front Wheelhouse Liner Replacement (Front)
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure

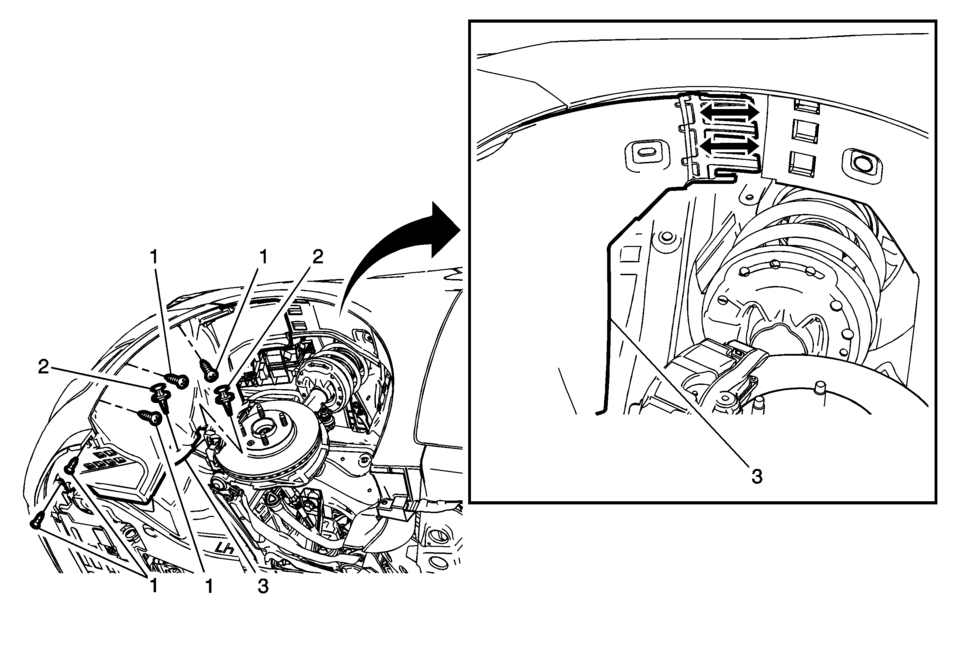

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation. |
|
|
1 |
Front Wheelhouse Liner Screw ?€“ Front (Qty:?€‰5) Caution: Refer to Fastener Caution.
2.5?€‰Y?€‰(22?€‰lb?€‰in) |
|
2 |
Front Wheelhouse Liner Push-In Retainer ?€“ Front (Qty:?€‰2) |
|
3 |
Front Wheelhouse Liner ?€“ Front Procedure
Disengage the upper interlocking retainers. |
Front Side Door Weatherstrip Replacement - Door Side
Front Side Door Weatherstrip Replacement - Door Side
Callout
Component Name
1
Front Side Door Weatherstrip Upper Retaine ...
Front Wheelhouse Liner Replacement (Rear)
!l
Front Wheelhouse Liner Replacement
Callout
Component Name
Preliminary Procedure
Remove the tire and wheel assembly. Refer to ...
