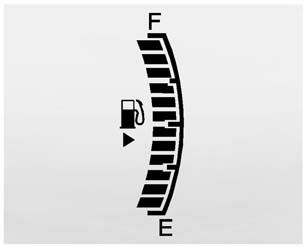

The fuel gauge indicates about how much fuel is left when the ignition is turned to ON/RUN.
When the tank nears empty, the low fuel warning light will come on. There is still a little fuel left, but the vehicle's fuel tank should be filled soon. See Low Fuel Warning Light for more information.
An arrow on the fuel gauge indicates on which side of the vehicle the fuel door is located.
Here are four things that some owners ask about. None of these show a problem with the fuel gauge:
