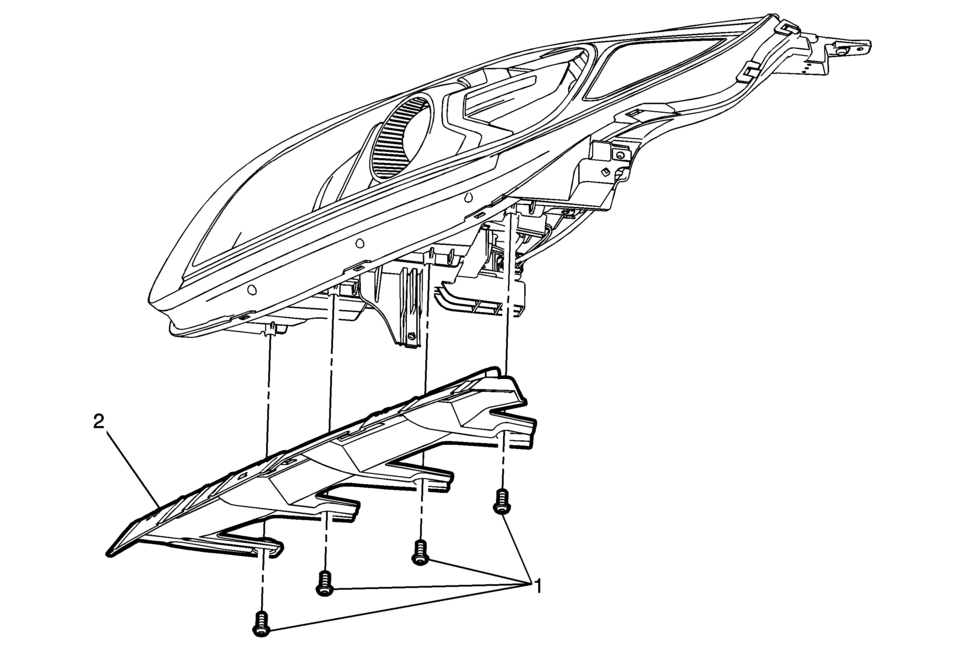

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement. |
|
|
1 |
Headlamp Bracket Screw (Qty:?€‰4) Caution: Refer to Fastener Caution.
2.5?€‰Y (22?€‰lb?€‰in) |
|
2 |
Headlamp Bracket |
Headlamp Aiming
Headlamp Bulb ReplacementBattery Positive and Negative Cable Replacement
Removal Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable
Disconnection and Connection.
Remove the fuse block and battery positive cable cover.
Remove the battery tray. Refer to Battery Tray Replacement.
Remove the battery posit ...
Engine Front Cover Gasket Installation
Clean the sealing surfaces and remove all remains of old sealing compound
material.
Note: The thickness of the sealing bead should be 2 mm (0.0787 in).
Apply sealing compound to the shown areas (1) and (2). Refer to Adhesives,
Fluids ...
Ignition Coil Replacement
Special Tools
EN-6009 Remover and Installer Ignition Coil
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Remove the engine wiring harness guide (1) from the cylinder head.
Disconnect the ignition coil electrical connector (2).
...
