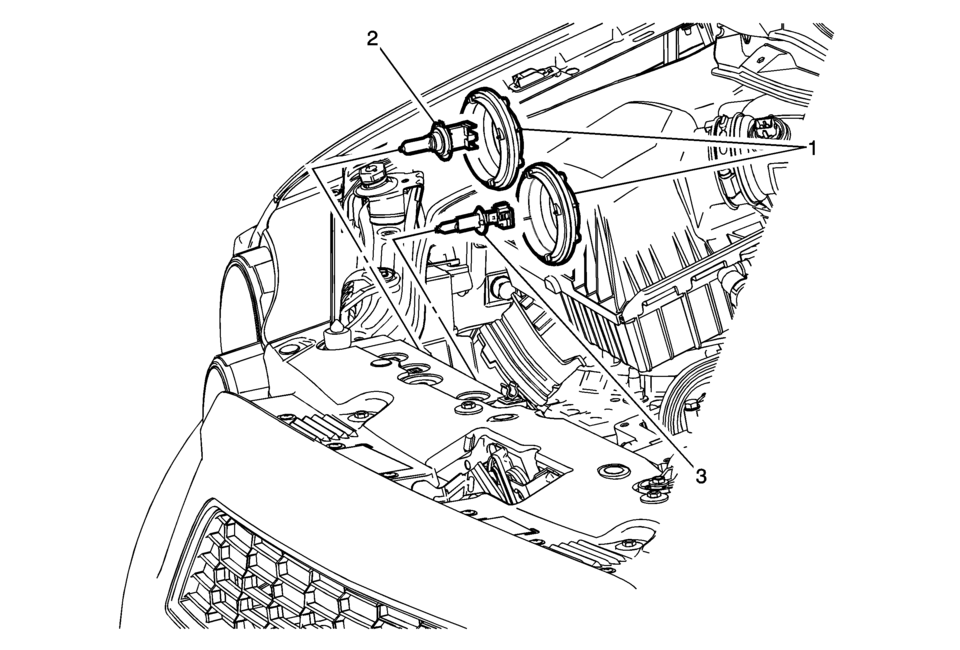

Callout |
Component Name |
---|---|
Preliminary Procedure
Open and support the hood assembly. |
|
1 |
Accessory Bulb Cover?€‰(Qty:?€‰2) |
2 |
Warning: Refer to Halogen Bulb Warning. Headlamp Bulb?€‰(Low Beam) Procedure
|
3 |
Headlamp Bulb?€‰(High Beam) Procedure
|
Engine Coolant Thermostat Housing Removal
Caution: Refer to Engine Coolant Thermostat Housing Caution.
Remove the engine coolant thermostat housing retainer nut (4).
Remove the engine coolant thermostat housing retainer (1).
Remove the 4 engine coolant thermostat housing bolts (3).
Remo ...
Secondary Air Injection Pump Pipe Replacement
Secondary Air Injection Pump Pipe Replacement
Callout
Component Name
1
Hose Retainer (QTY:2)
Note: Squeeze the retainer on opposite sides to release.
2
Secondary Air Injection ...
Transmission Fluid Pump Assemble (6T40/45/50)
Table 1:
Fluid Pump w/Valve Trains Assemble
Table 2:
Torque Converter Fluid Seal and Fluid Filter Assembly
Assemble
Fluid Pump w/Valve Trains Assemble
Fluid Pump w/Valve Trains Assemble
Callout
Comp ...
