Chevrolet Sonic Owner's Manual: Headlamp High/Low-Beam Changer

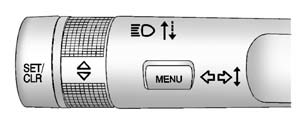

(Headlamp High/Low-Beam Changer):
Push the turn signal lever away from you to turn the high beams on.
Push the lever again or pull the lever toward you to return to low beams.
This indicator light turns on in the instrument cluster when the high-beam headlamps are on.
