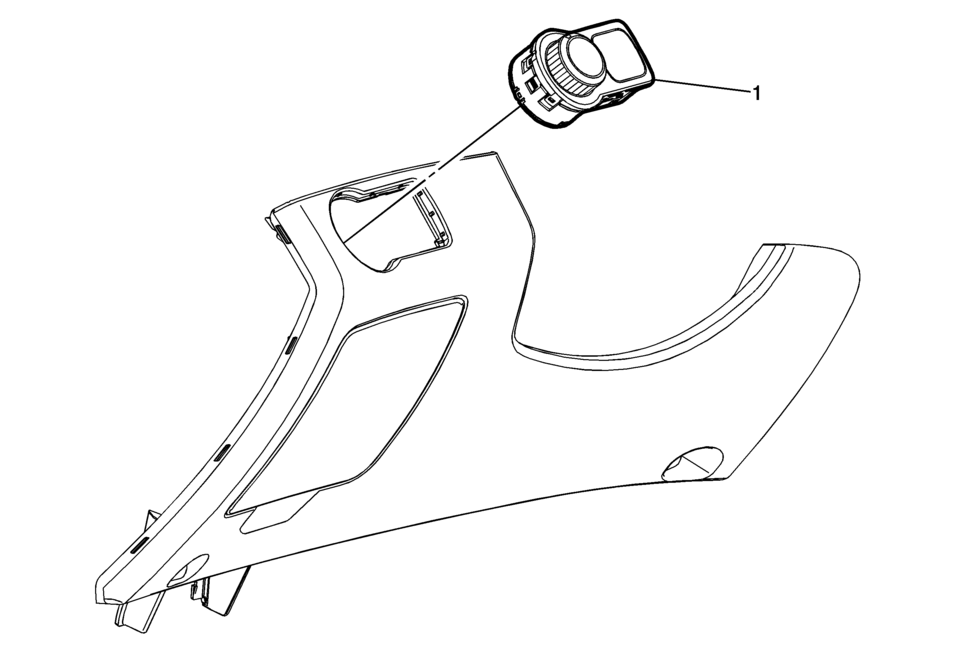

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement |
|
|
1 |
Headlamp Switch Procedure
|
Headlamp ReplacementMalfunction Indicator Lamp
A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors
the operation of the vehicle to ensure emissions are at acceptable levels, helping
to maintain a clean environment. The malfunction indicator lamp comes on when the
vehicle is placed in ON/RUN, as a check to show ...
Engine Block Assemble
Install the 4 piston oil nozzles (1).
Caution: Refer to Fastener Caution.
Install the 4 piston oil nozzle bolts (2) and tighten to 25 Y (18 lb ft).
Install the knock sensor (2).
Install the knock se ...
Turbocharger System Description
12
(1)
Turbocharger Bypass Solenoid Valve
(2)
Multifunction Intake Air Sensor
(3)
Turbocharger Wastegate Regulator Solenoid Valve
(4)
Turbocharger
(5)
Turbocharger Bypass Valve
(6)
Turbocharger Was ...
