Chevrolet Sonic Owner's Manual: High-Beam Headlamp/ Low-Beam Headlamp
1. Open the hood. See Hood.
2. For the driver side bulb, remove the windshield washer bottle filler neck by turning it one-quarter turn counterclockwise and pulling it straight up and out of the bottle.

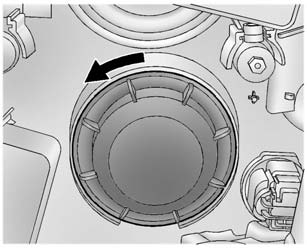

3. Remove the headlamp bulb access cover.
4. Turn the bulb counterclockwise and pull straight back.
5. Disconnect the wiring harness connector from the bulb.
6. Install the new bulb in the headlamp assembly by turning clockwise.
7. Reconnect the wiring harness connector.
8. Install the headlamp bulb access cover.
9. For the driver side bulb, replace the windshield washer bottle filler neck by turning it one-quarter turn clockwise into the bottle.
Headlamps, Front Turn Signal and Parking Lamps
Passenger Side Shown, Driver Side Similar
1. High-Beam Headlamp
2. Low-Beam Headlamp
3. Parking/Turn Signal Lamps ...
Parking/Turn Signal Lamp
1. Open the hood. See Hood.
2. Remove the parking/turn signal lamp bulb socket from the headlamp assembly
by turning counterclockwise.
3. Remove the bulb from the bulb socket by pulling it strai ...
