Chevrolet Sonic Repair Manual: Hood Hold-Open Rod Replacement
|

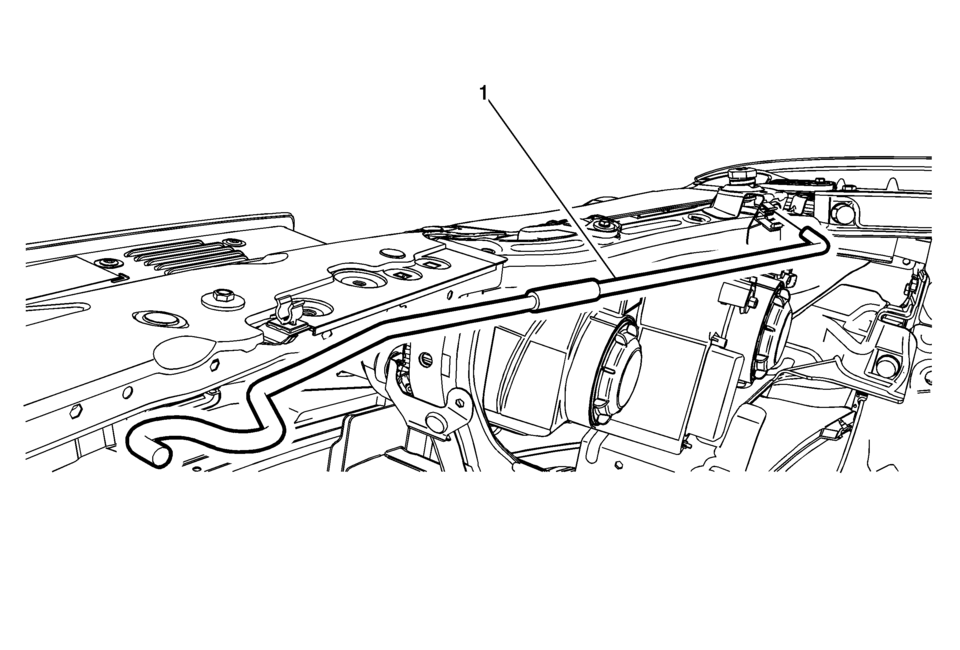

Callout |
Component Name |
|---|---|
|
1 |
Hood Hold-Open Rod Warning: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure
Open the retainer and remove the hood hold-open rod. |
