Chevrolet Sonic Repair Manual: Hood Primary Latch Release Cable Handle Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Hood Primary Latch Release Cable Handle Replacement



Hood Primary Latch Release Cable Handle Replacement

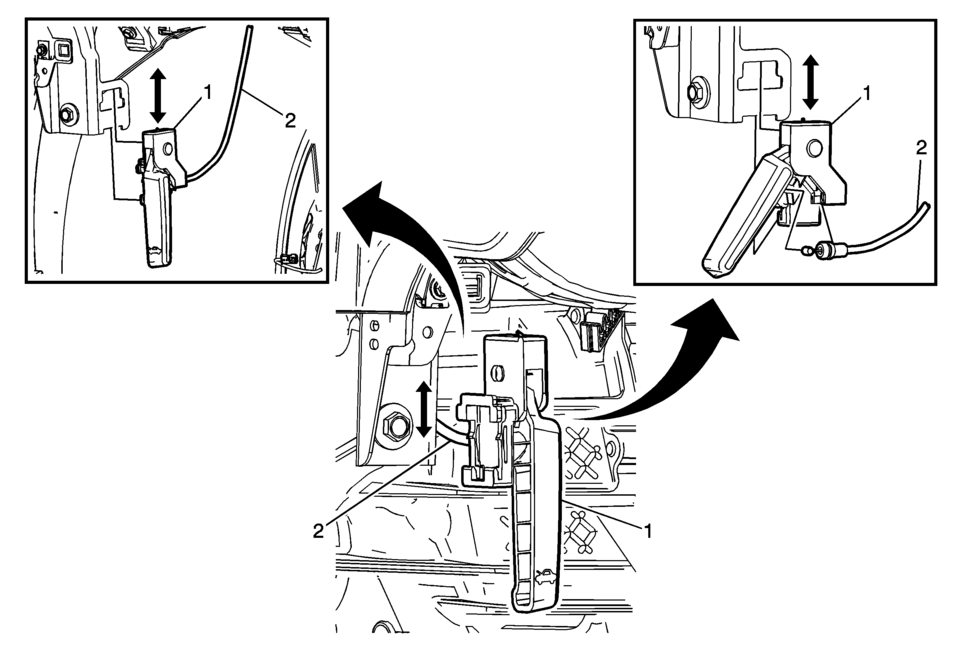

Callout

Component Name

Preliminary Procedure

Remove the front side door opening floor carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement.

1

Hood Primary Latch Release Cable Handle

Procedure

Press the release cable handle upward to release the retainers from the instrument panel bracket.

2

Hood Primary Latch Release Cable

Procedure

Disconnect the hood release cable from the hood release handle.
