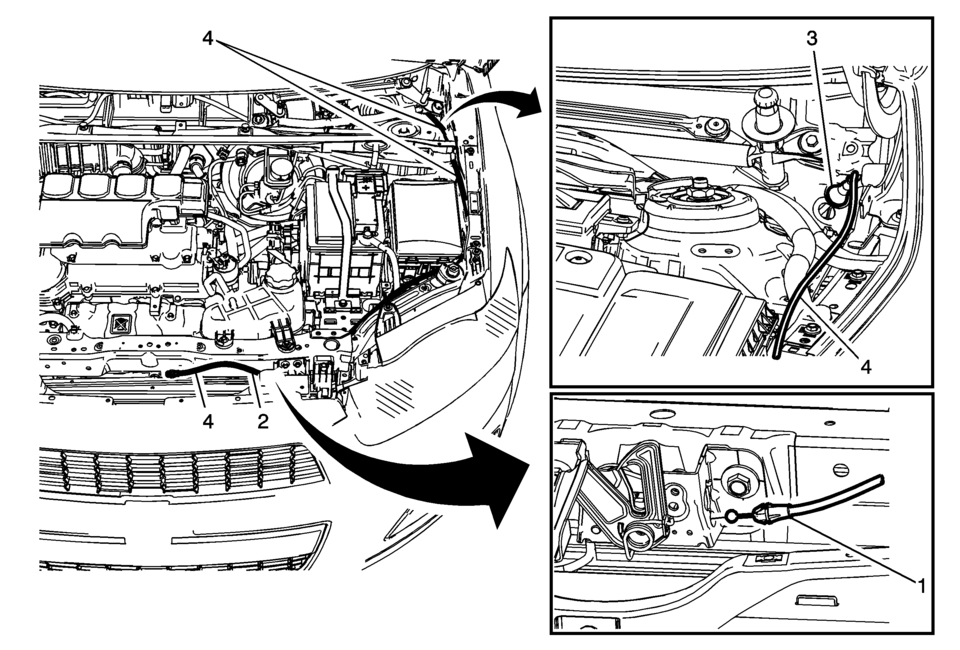

Callout |
Component Name |
---|---|
Preliminary Procedures
|
|
1 |
Hood Primary Latch Cable Procedure
Disconnect the hood primary latch release cable from the primary hood latch. |
2 |
Hood Primary Latch Release Cable Retainer Procedure
Disconnect the hood release cable retainers from the hood release cable. |
3 |
Hood Primary Latch Release Cable Grommet |
4 |
Hood Primary Latch Release Cable Procedure
Disconnect the hood primary latch release cable handle from the hood latch cable. Refer to Hood Primary Latch Release Cable Handle Replacement. |
Front Side Door Window Outer Sealing Strip Replacement
Front Side Door Window Outer Sealing Strip Replacement
Callout
Component Name
1
Front Side Door Window Outer Sealing Strip
Procedure
Do Not remove the outside rearview mirror.
Use the appropriate tool, lift th ...
Exhaust Manifold Heat Shield Replacement (LUV)
Exhaust Manifold Heat Shield Replacement
Callout
Component Name
Warning: Refer to Exhaust Service Warning.
1
Exhaust Manifold Heat Shield Fasteners (Qty: 3)
Caution: Refer to Fas ...
Drive Belt Replacement
Special Tools
EN-48488 Holding Wrench
EN-955 Locking Pin
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Remove the right front wheelhouse liner extension. Refer to Front Wheelhouse
Liner Inner Front Extension Replacement.
Install the engine s ...
