Callout |
Component Name |
|---|---|
|
1 |
Hood Rear Seal Procedure
|
Hood Primary and Secondary Latch Replacement
Hood Rear Weatherstrip ReplacementBrake Pedal Position Sensor Replacement
Removal Procedure
Remove the instrument panel lower trim pad cover. Refer to Instrument
Panel Lower Trim Pad Cover Replacement.
Disconnect the brake pedal position sensor electrical connector.
Remove the brake pedal position sensor bolt?€‰(1).
Remove t ...

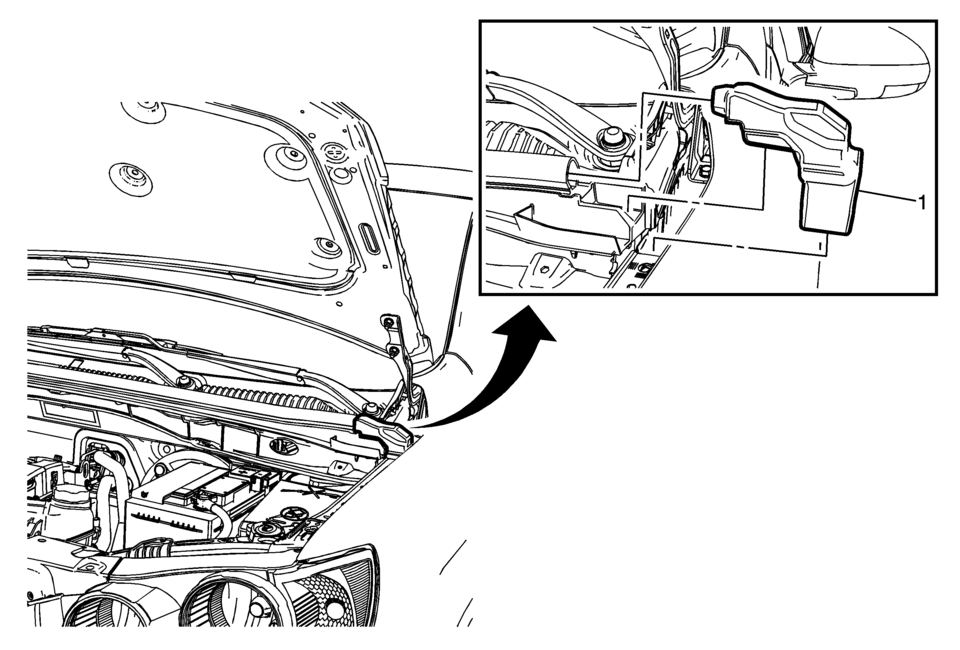

Exhaust Manifold Heat Shield Replacement (LUV)
Exhaust Manifold Heat Shield Replacement
Callout
Component Name
Warning: Refer to Exhaust Service Warning.
1
Exhaust Manifold Heat Shield Fasteners (Qty: 3)
Caution: Refer to Fas ...
Camshaft Sprocket Replacement
Special Tools
EN-6340 Camshaft Adjuster Locking Tool
EN-6628–A Camshaft Locking Tool
EN-45059 Angle Meter
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Open the hood.
Remove the air cleaner housing. Refer to Air Cleaner Assembly Replacement. ...
