Chevrolet Sonic Repair Manual: Hydraulic Valve Lash Adjuster Arm Removal
Note:
Mind the installation position of the hydraulic valve lash adjuster arms.

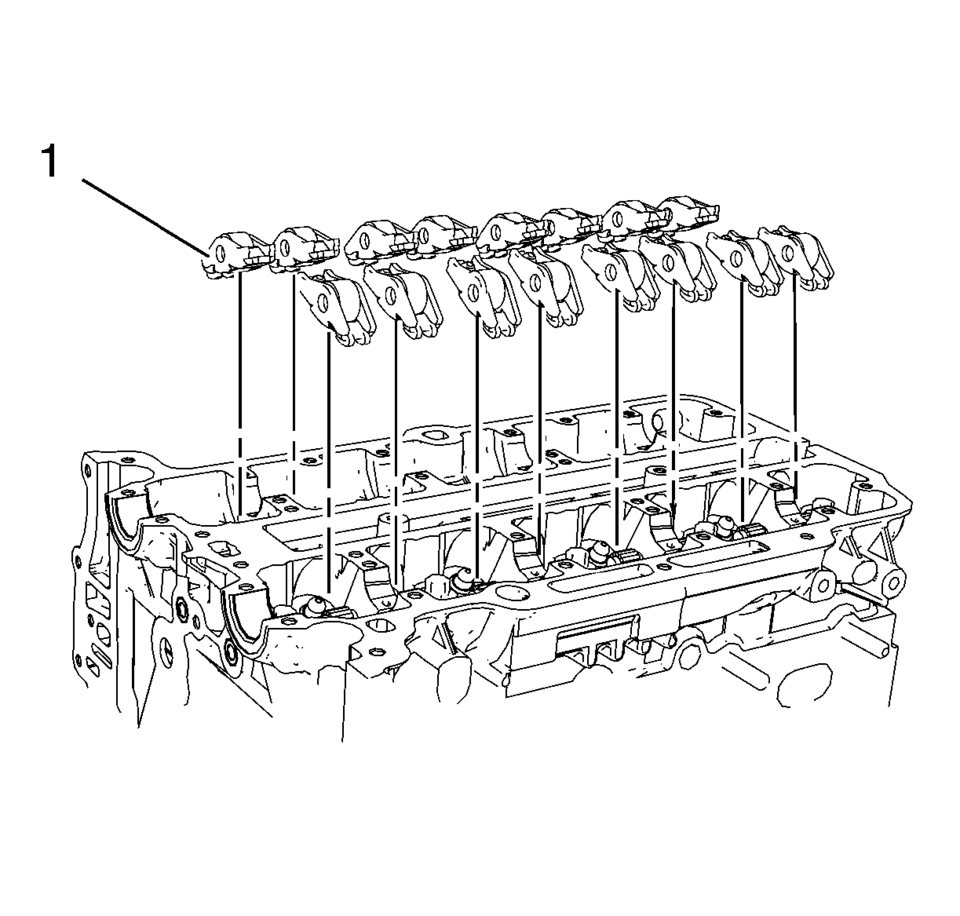

Remove the 16 hydraulic valve lash adjuster arms (1).
Hydraulic Valve Lash Adjuster Arm Installation
Note: Hydraulic valve lash adjuster arms should be installed in
their original position.
Lubricate the hydraulic valve lash adjuster arms with engine oil.
Install the 16̴ ...
Hydraulic Valve Lash Adjuster Arm Replacement
Hydraulic Valve Lash Adjuster Arm Replacement
Callout
Component Name
Preliminary Procedures
Remove the intake camshaft. Refer to In ...
