Chevrolet Sonic Repair Manual: Input, Reaction, and Output Carrier Assemble (Gen 1)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Input, Reaction, and Output Carrier Assemble (Gen 1)

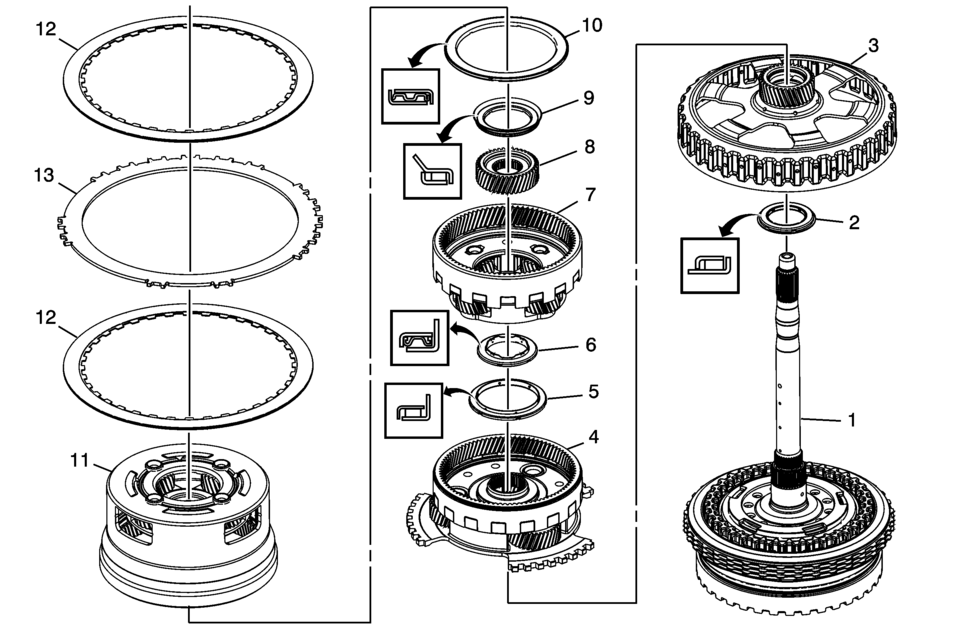

Input, Reaction, and Output Carrier Assemble

Callout

Component Name

1

3? Reverse and 4?? Clutch Housing Assembly

2

Reaction Carrier Sun Gear Thrust Bearing

3

Reaction Carrier Sun Gear Assembly

4

Reaction Carrier Assembly

Note:

Starting in 2012, all 6T30/40/45/50 models have 3 pinion reaction carriers. The 3 pinion reaction carriers are back serviceable for all models.

Original Configuration:

  • The 6T30 and 6T40 had 3 pinions.
  • The 6T45 and 6T50 had 4 pinions.

5

Input Carrier Thrust Bearing Assembly

6

Input Sun Gear Thrust Bearing Assembly

7

Input Carrier Assembly

Note:

  • The 6T30 and 6T40 have 4 pinions.
  • The 6T45 and 6T50 have 5 pinions.

8

Input Sun Gear

9

Input Sun Gear Thrust Bearing Assembly

10

Output Carrier Thrust Bearing Assembly

11

Output Carrier Assembly

Note:

  • The 6T30 and 6T40 have 4 pinions.
  • The 6T45 and 6T50 have 5 pinions.

12

2? Clutch Plate Assembly (Qty: 2)

Note:

Begin with the clutch plate assembly and alternate with the clutch plate.

13

2? Clutch Plate (Qty: 1)

Note:

Only install one 2? Clutch Plate at this time. The remaining clutch plate is installed into the case.
