Chevrolet Sonic Repair Manual: Instrument Panel Airbag Arming Status Display Replacement
|

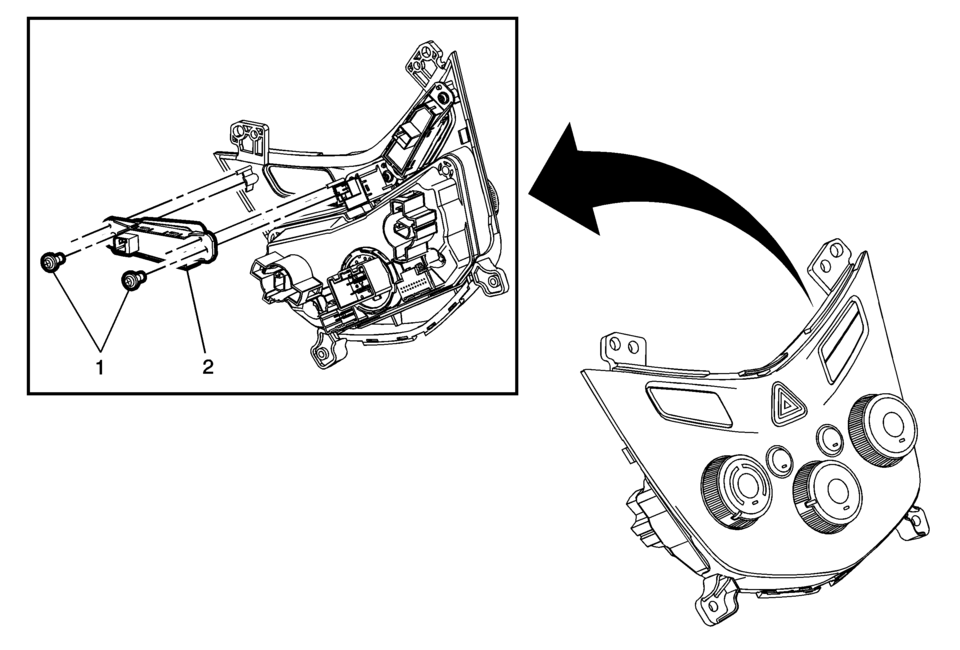

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement. |
|
|
1 |
Instrument Cluster Display Switch Fastener (Qty:?€‰2) Caution: Refer to Fastener Caution. |
|
2 |
Inflatable Restraint Instrument Panel Module Indicator Procedure
Disconnect the electrical connector. |
Front Seat Outboard Seat Back Airbag Replacement
Front Seat Outboard Seat Back Airbag Replacement
Callout
Component Name
Warning: Following the deployment of a side impact air ...
Instrument Panel Lower Airbag Replacement - Driver Side
Instrument Panel Lower Airbag Replacement - Driver Side
Callout
Component Name
Warning: Refer to SIR Inflator Module Handling ...
