Chevrolet Sonic Repair Manual: Instrument Panel Center Air Outlet Replacement
|

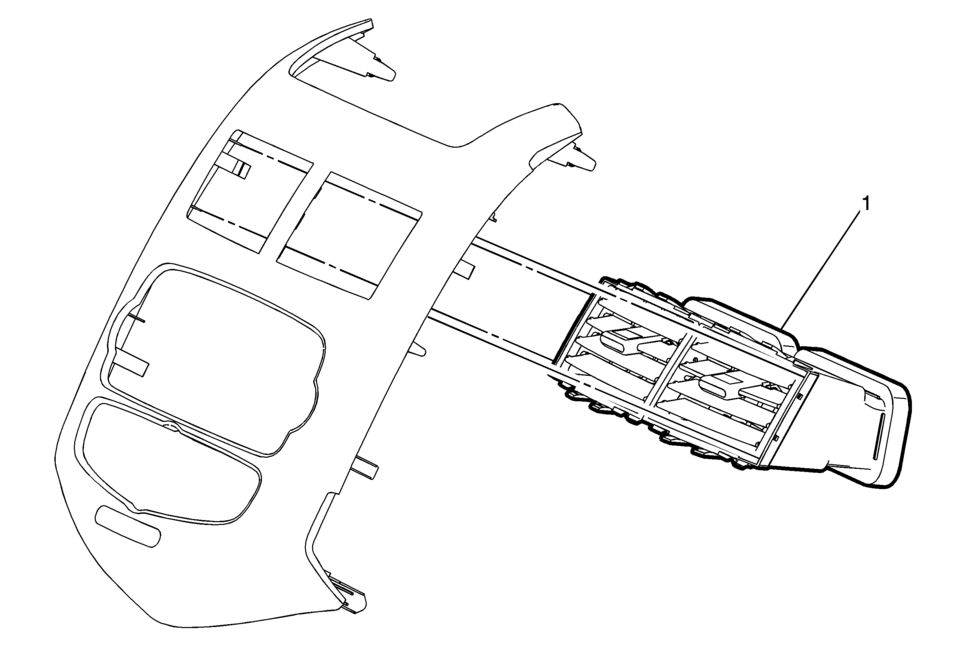

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement. |
|
|
1 |
Instrument Panel Center Air Outlet Assembly Procedure
Unsnap the instrument panel center air outlet from the center molding assembly. |
