Chevrolet Sonic Repair Manual: Instrument Panel Compartment Door Latch Replacement
|
Callout |
Component Name |
|---|---|
|

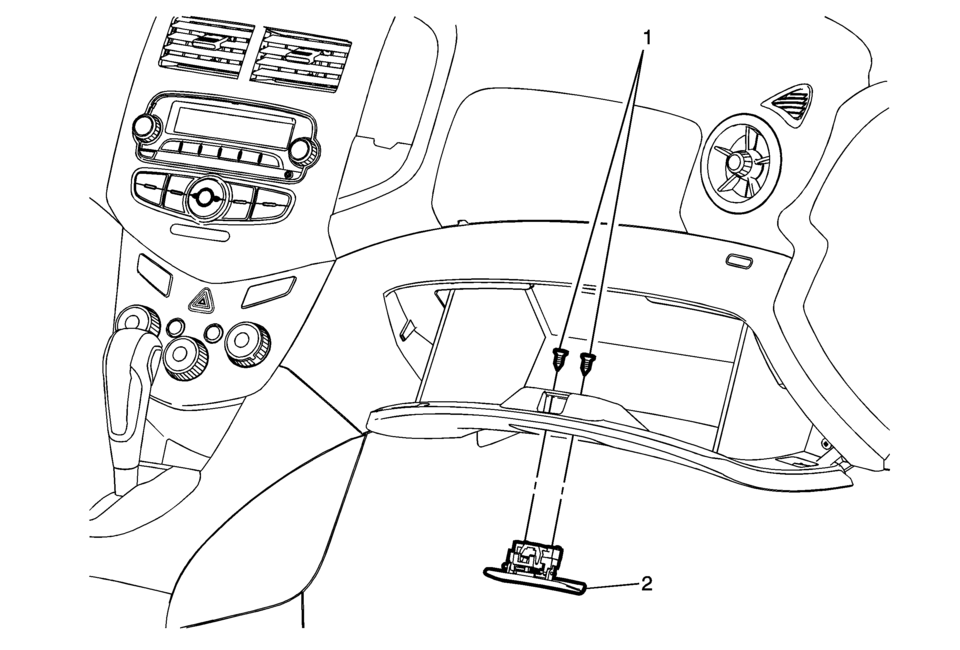

1 |
Instrument Panel Compartment Door Latch Fasteners (Qty:?€‰2) Caution: Refer to Fastener Caution. |
|
2 |
Instrument Panel Compartment Door Latch Assembly |
Instrument Panel Compartment Door Dampener Replacement
Instrument Panel Compartment Door Dampener Replacement
Callout
Component Name
Preliminary Procedure
Remove the instrument panel ...
Instrument Panel Compartment Replacement
Instrument Panel Compartment Replacement
Callout
Component Name
Preliminary Procedure
Remove the right instrument panel upper t ...
