Chevrolet Sonic Repair Manual: Instrument Panel Fuse Block Access Hole Cover Replacement (Without AAL)
|

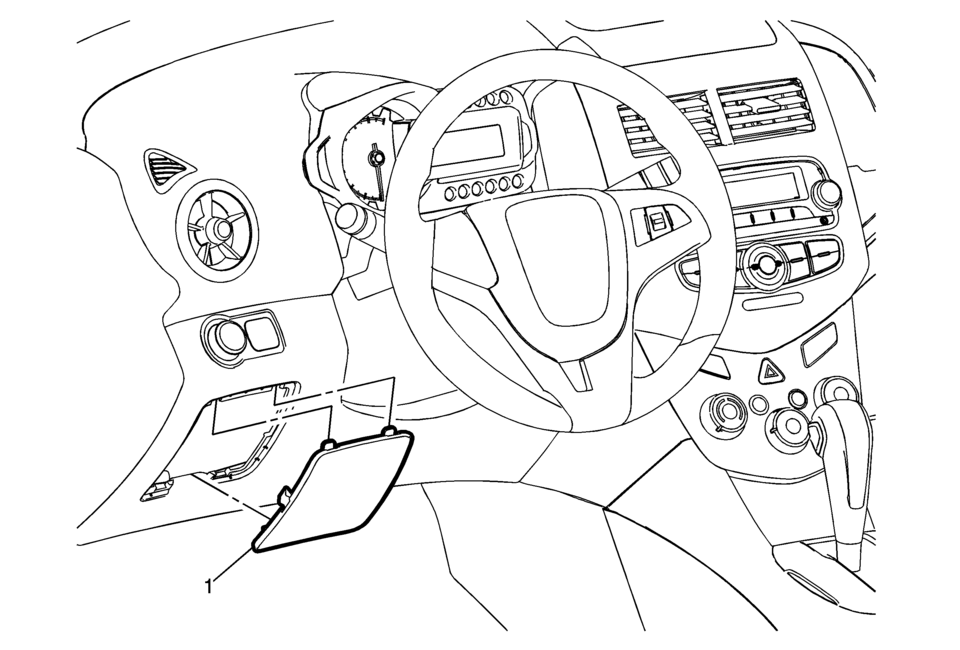

Callout |
Component Name |
|---|---|
|
1 |
Instrument Panel Fuse Block Access Hole Cover Procedure
Grasp the lower edge of the fuse block cover and pull outward disengaging the retainers securing the fuse block cover to the instrument panel lower trim pad cover. |
Instrument Panel Fuse Block Access Hole Cover Replacement (With AAL)
Instrument Panel Fuse Block Access Hole Cover Replacement
Callout
Component Name
1
Instrument Panel Fuse Block Access Ho ...
Instrument Panel Insulator Replacement
Instrument Panel Insulator Replacement
Callout
Component Name
Preliminary Procedures
Disable the SIR system. Refer to SIR Disabling ...
