Chevrolet Sonic Repair Manual: Instrument Panel Fuse Block Access Hole Cover Replacement (Without AAL)

Chevrolet Sonic Repair Manual / Electrical / Fuses Junctions and Relays / Instrument Panel Fuse Block Access Hole Cover Replacement (Without AAL)



Instrument Panel Fuse Block Access Hole Cover Replacement

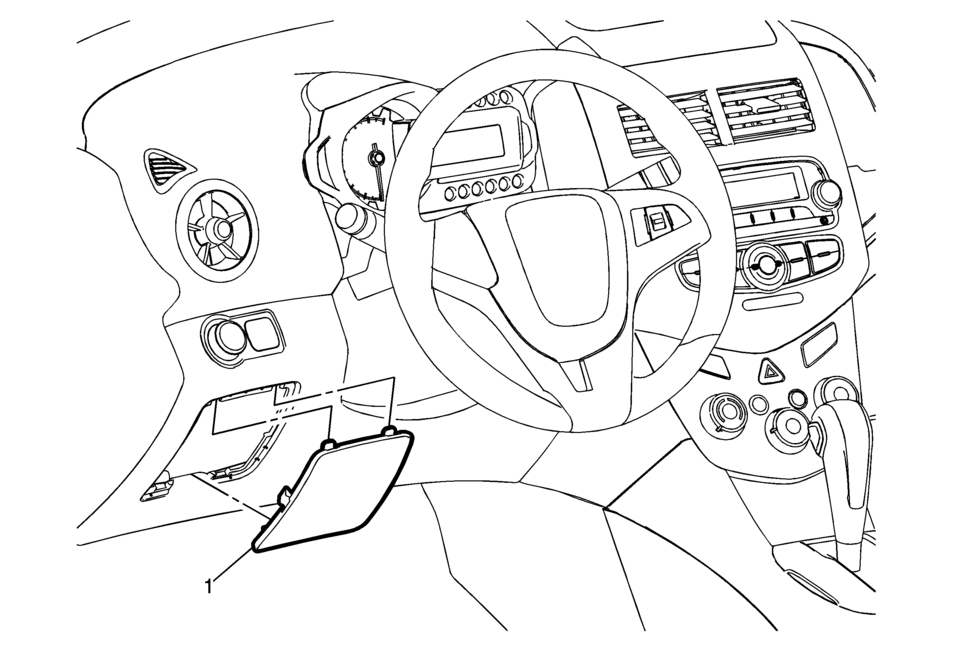

Callout

Component Name

1

Instrument Panel Fuse Block Access Hole Cover

Procedure

Grasp the lower edge of the fuse block cover and pull outward disengaging the retainers securing the fuse block cover to the instrument panel lower trim pad cover.
