Chevrolet Sonic Repair Manual: Instrument Panel Lower Airbag Replacement - Driver Side

Chevrolet Sonic Repair Manual / Body / Restraints / Restraints Control / Instrument Panel Lower Airbag Replacement - Driver Side



Instrument Panel Lower Airbag Replacement - Driver Side

Callout

Component Name

Warning:

Refer to SIR Inflator Module Handling and Storage Warning.

Warning:

Refer to SIR Warning.

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.

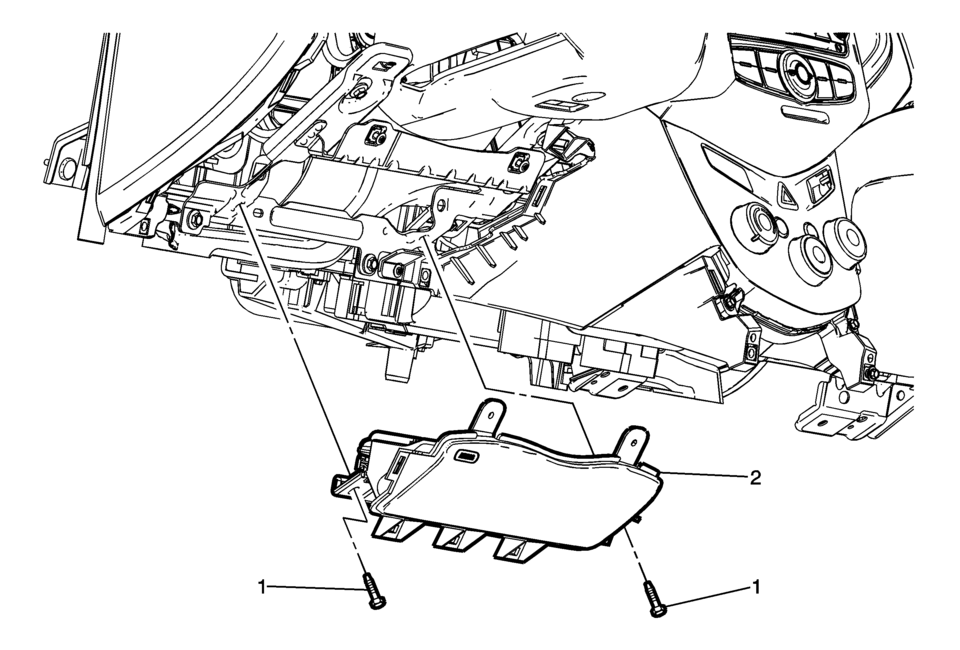

1

Instrument Panel Lower Airbag Fastener (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y?€‰(80?€‰lb?€‰in)

2

Inflatable Restraint Instrument Panel Lower Module Assembly ?€“ Driver Side

Procedure

  1. Refer to Inflatable Restraint Module Handling and Scrapping.
  2. Enable the SIR system. Refer to SIR Disabling and Enabling.
