Chevrolet Sonic Repair Manual: Instrument Panel Lower Trim Pad Cover Replacement (Without AAL)

Chevrolet Sonic Repair Manual / Body / Body Interior / Center Console / Instrument Panel Lower Trim Pad Cover Replacement (Without AAL)

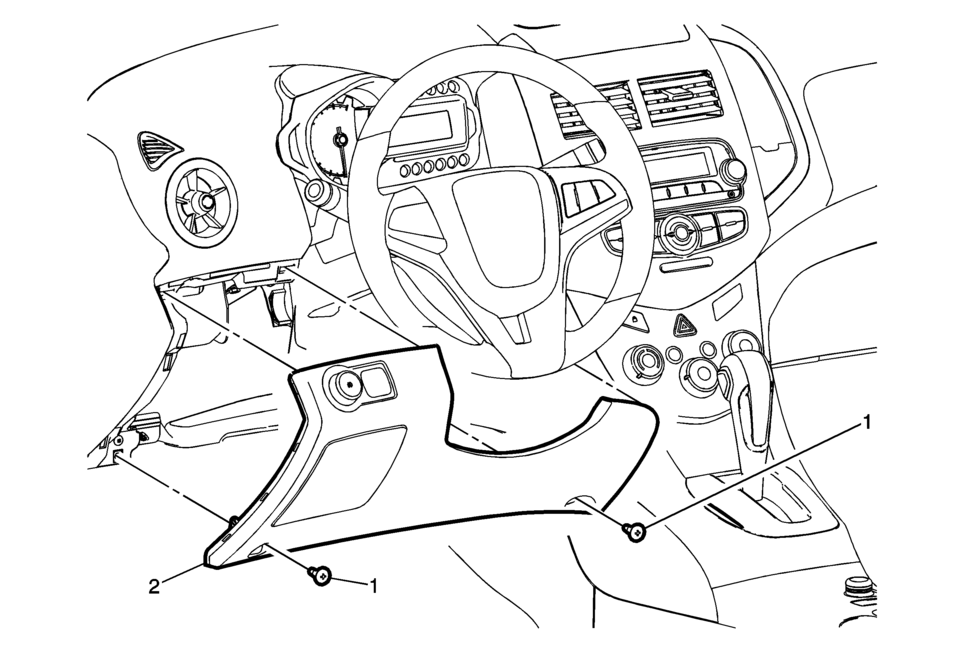

Instrument Panel Lower Trim Pad Cover Replacement

Callout

Component Name

1

Instrument Panel Lower Trim Pad Fastener (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

2

Instrument Panel Lower Trim Pad Cover

Procedures

  1. Use a flat bladed plastic trim tool in order to disengage the retainers securing the lower trim pad cover to the instrument panel assembly.
  2. Disconnect the electrical connectors.
  3. When replacing the instrument panel lower trim pad cover, transfer all necessary components.
