Chevrolet Sonic Repair Manual: Instrument Panel Outer Air Outlet Replacement - Right Side
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the right instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Panel Replacement - Right Side. |
|
|
1 |
Instrument Panel Outer Air Outlet Assembly Procedure

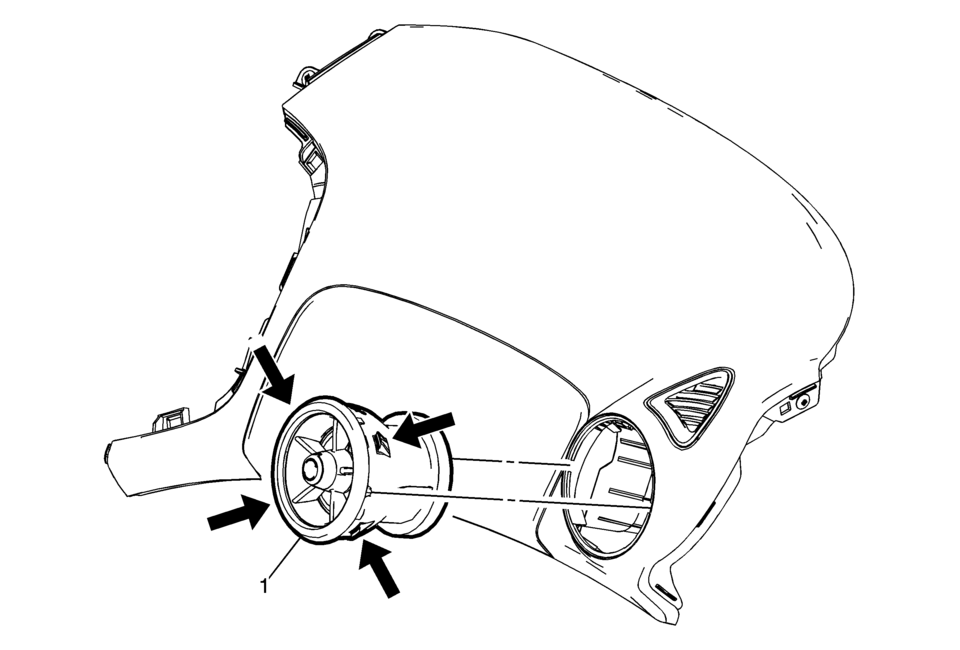

Remove the air outlet assembly by pressing the 4 securing tabs from the inside of the upper trim panel. |
