Instrument Panel Upper Compartment Door Latch Replacement

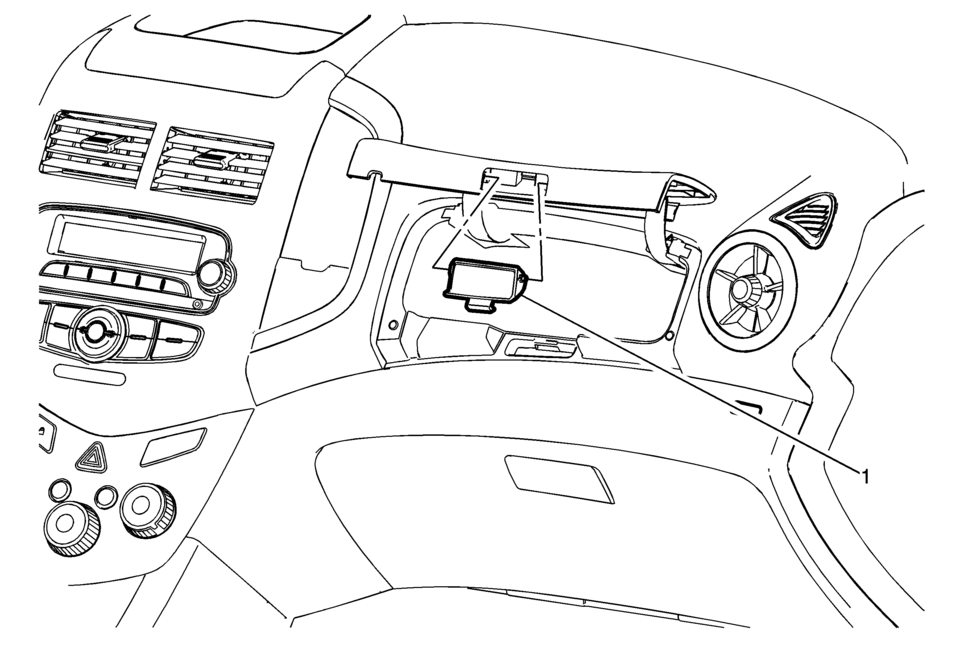

Callout

Component Name

1

Instrument Panel Upper Compartment Door Latch

Procedures

  1. Open the instrument panel compartment door.
  2. Unsnap the instrument compartment door latch from the door assembly.
