Instrument Panel Upper Trim Panel Replacement - Right Side

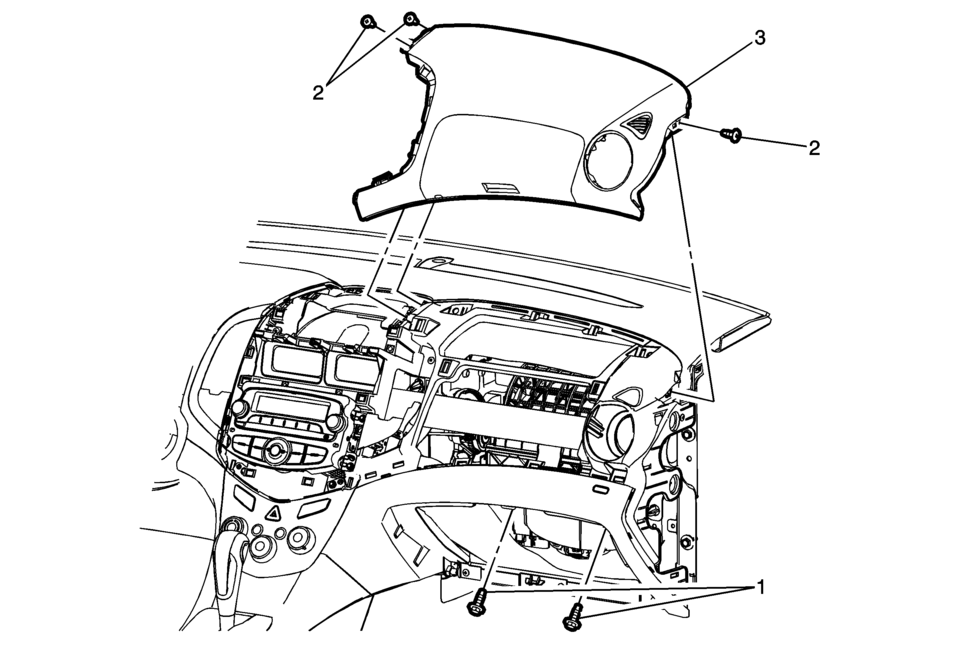

Callout

Component Name

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement.
  3. Remove the instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement.
  4. Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement.
  5. Remove the right instrument panel accessory upper trim plate. Refer to Instrument Panel Accessory Upper Trim Plate Replacement.
  6. Remove the right instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement.

1

Instrument Panel Inflatable Restraint Module Fasteners (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


10Y 89?€‰lb?€‰in

2

Instrument Panel Upper Trim Panel Fastener (Qty:?€‰3)

3

Instrument Panel Upper Trim Panel

Procedures

  1. Use a flat bladed plastic trim tool in order to disengage the retainers securing the upper trim panel to the instrument panel assembly.
  2. Disconnect the electrical connections.
  3. When replacing the instrument panel upper trim panel, transfer all necessary components.
