Chevrolet Sonic Repair Manual: Intake Manifold Disassemble

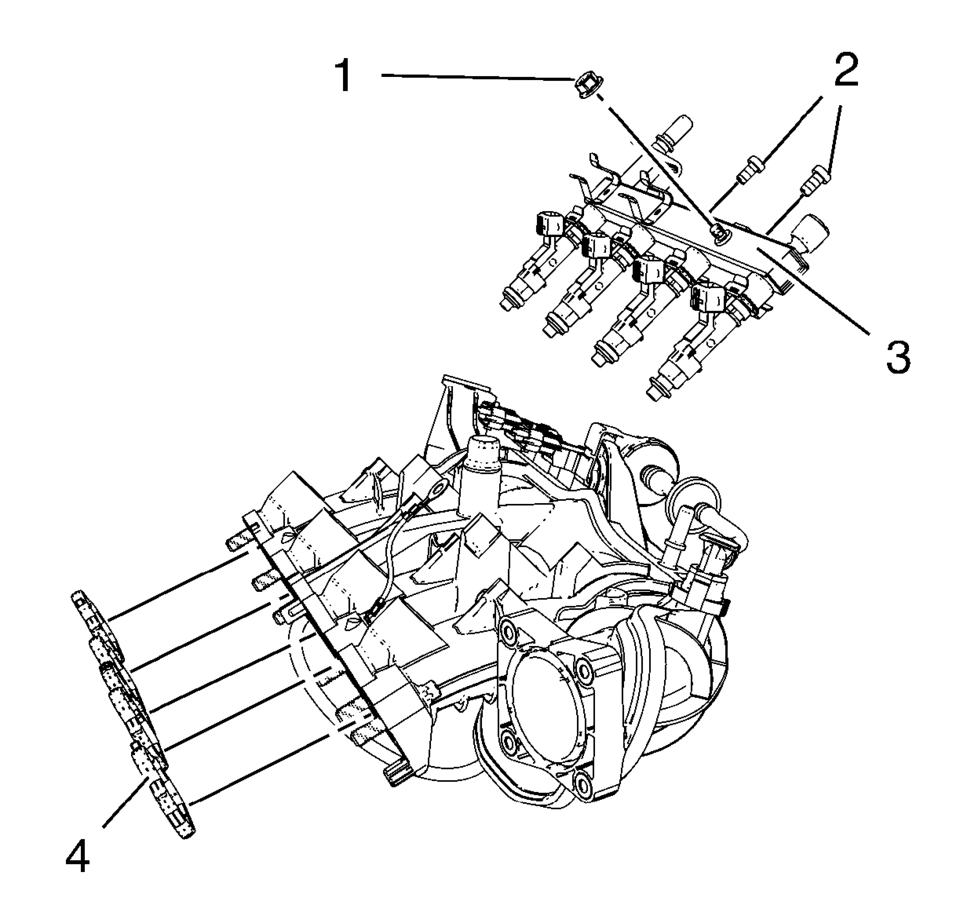

- Remove the fuel injection rail ground cable nut (1).
- Remove the 2 fuel injection rail bolts (2).
- Remove the fuel injection fuel rail assembly (3).
- Remove the intake manifold gasket (4).
- Remove the 2 manifold absolute pressure sensor bolts (1).
- Remove the 2 manifold absolute pressure sensors (2).
- Remove the evaporative emission canister purge solenoid valve (3).
Intake Manifold Cleaning and Inspection
Clean the intake manifold mating surfaces.
Inspect the intake manifold (2) for damage.
Inspect the intake manifold for cracks near metallic inserts.
Inspect the crankcase ventila ...
Intake Manifold Disassemble (1.6L LDE)
Remove the intake manifold absolute pressure sensor bolt.
Remove the manifold absolute pressure sensor (1) from the intake manifold (2).
Remove the intake manifold m ...
