Chevrolet Sonic Repair Manual: Intake Manifold Replacement
Special Tools
- EN-34730?E1 Pressure Tester
- EN-6015 Closure Plugs
For equivalent regional tools, refer to Special Tools
- Removal Procedure
-
- Disconnect the battery negative cable. Refer to Battery Negative Cable
Disconnection and Connection.
- Remove the engine sight shield.

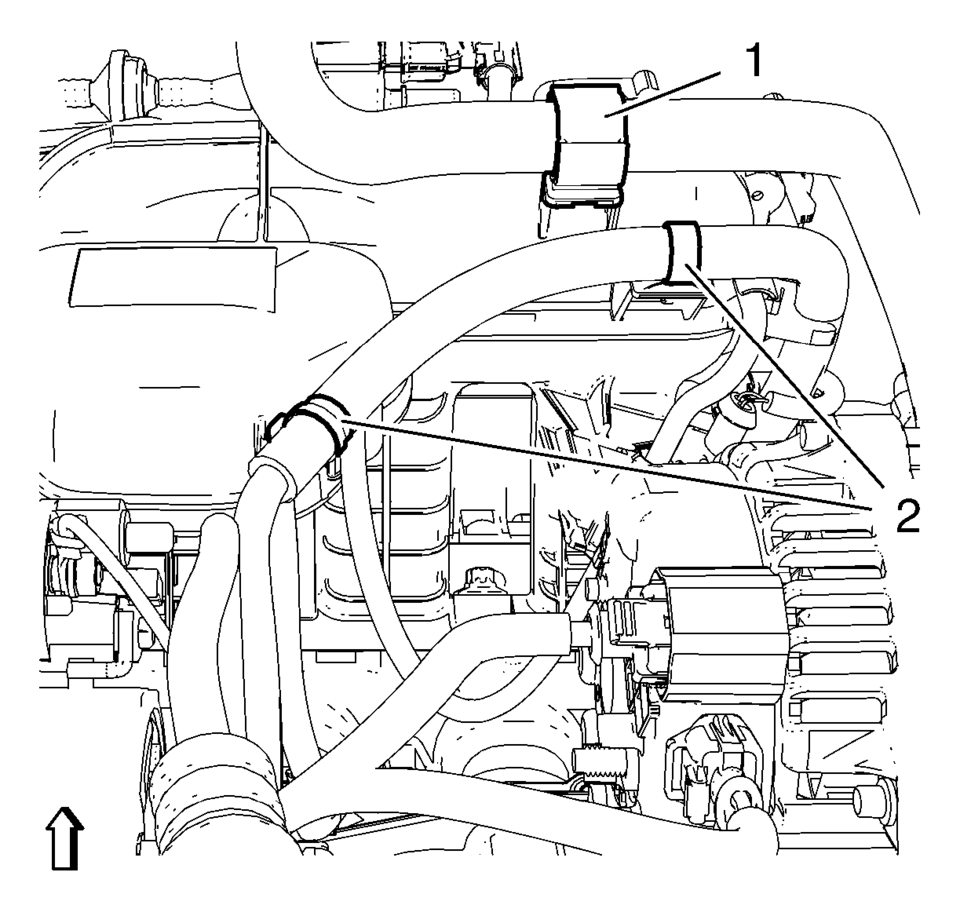

- Unclip the heater outlet hose from retainer clip (1).
- Unclip the engine control module wiring harness from 2 retainer clips (2).
- Lower the vehicle.
- Remove the charge air cooler outlet air hose from the throttle body.
Refer to Charge Air Cooler Outlet Air Hose Replacement.

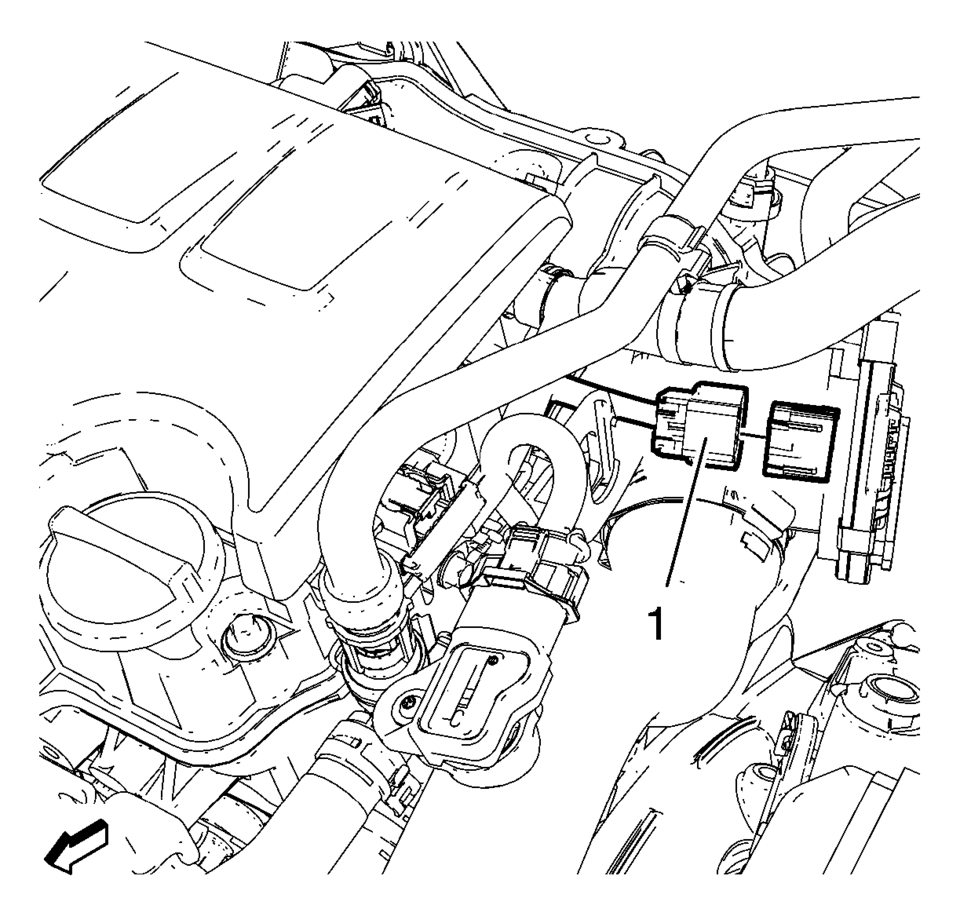

- Disconnect the throttle body wiring harness plug (1).
- Disconnect the evaporative emission canister purge solenoid valve wiring
harness plug (2).

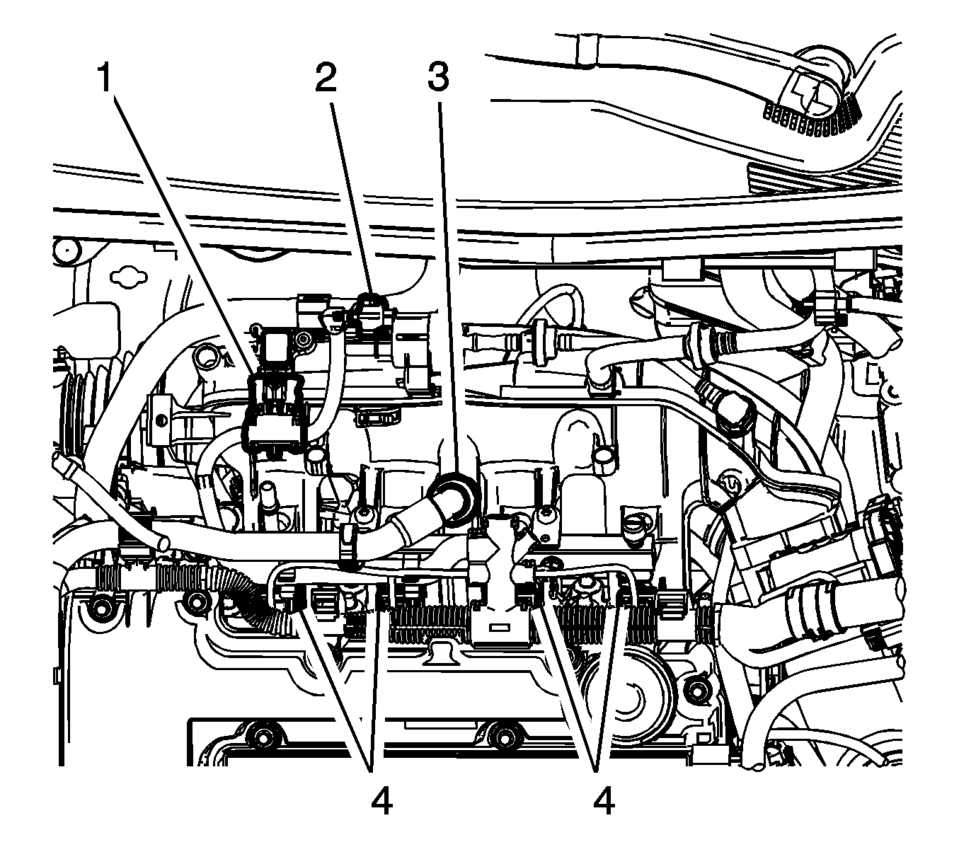

- Disconnect the manifold absolute pressure sensor wiring harness plug (1).
- Disconnect the 4 fuel injector wiring harness plugs (4).
- Unclip the engine control module wiring harness from the camshaft cover.
- Disconnect the PCV hose (3).

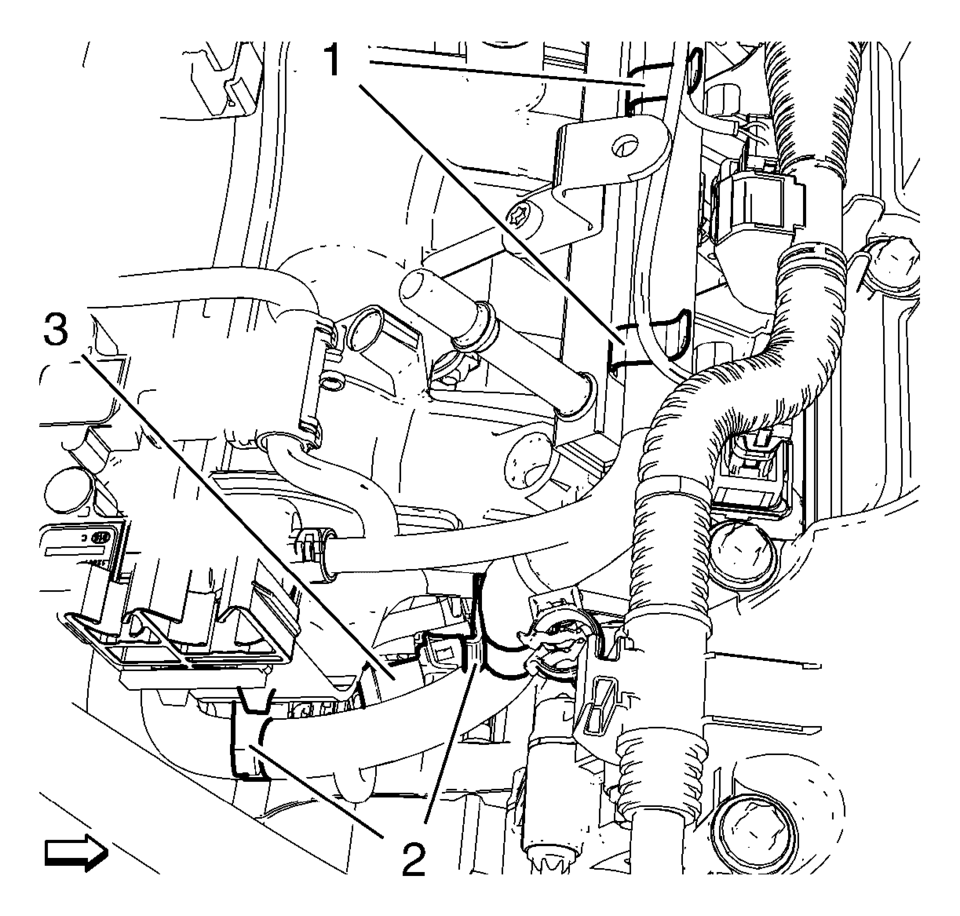

- Disconnect the turbocharger wastegate regulator solenoid valve wiring
harness plug (3).
- Unclip the engine control module wiring harness from 2 intake manifold
retainer clips (2) and from 2 fuel injection rail retainer clips (1).
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief.

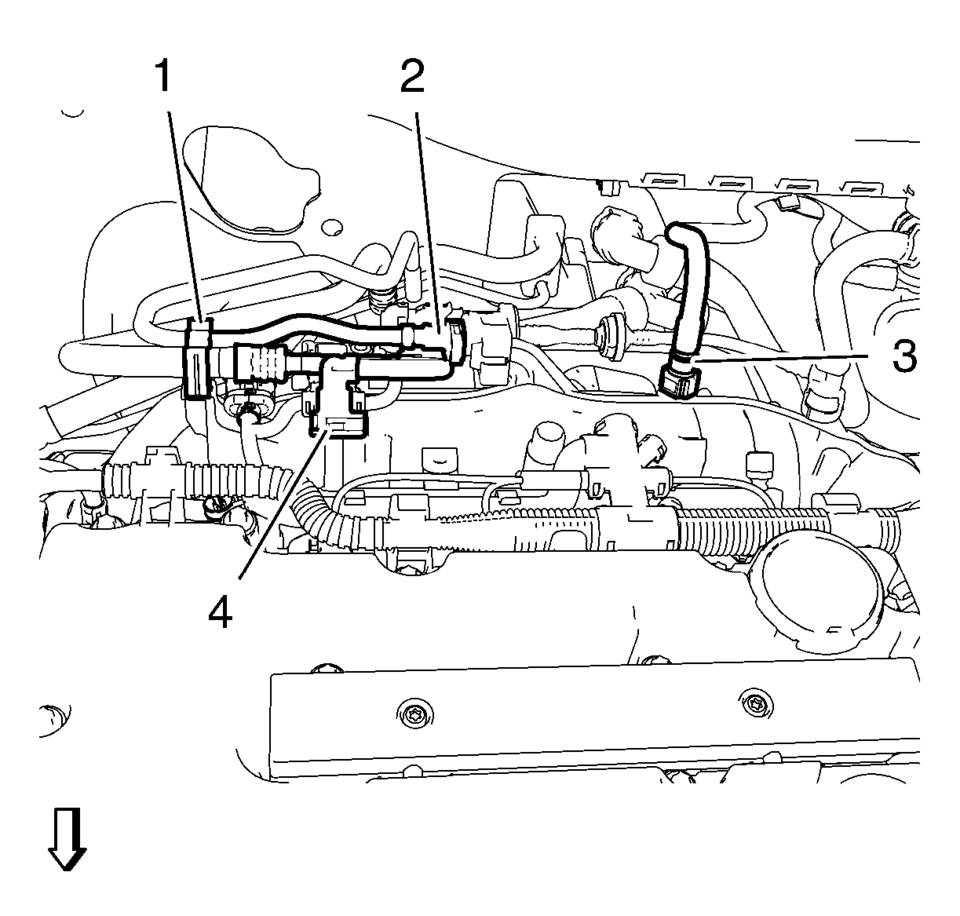

- Remove the fuel feed pipe (4) from fuel injector rail.
- Unclip the fuel feed pipe from retainer clip (1).
- Remove the fuel ventilation pipe (2) from evaporative emission canister
purge solenoid valve.
- Unclip the fuel ventilation pipe from retainer clip (1).
- Close the vents with the EN-6015 closure plugs.
- Disconnect the brake booster vacuum pipe (3) from the intake manifold.
Note:
The intake manifold bolts remain in intake manifold.

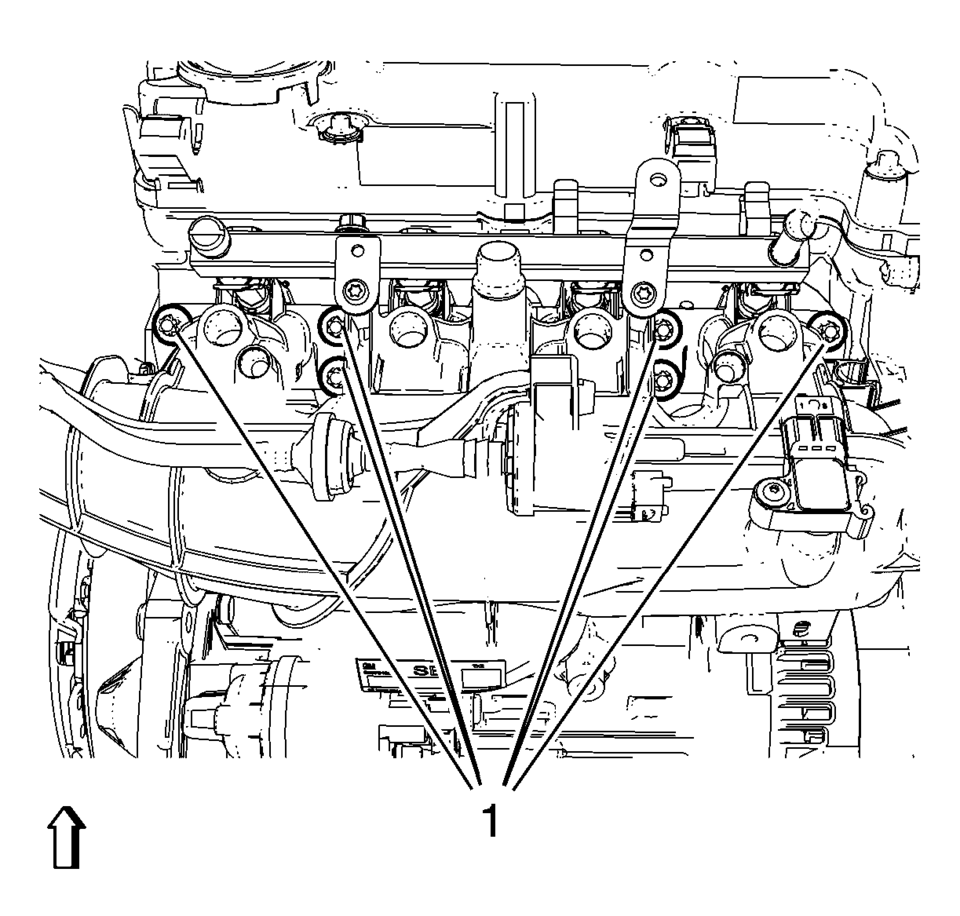

- Remove the 6 intake manifold bolts (1).

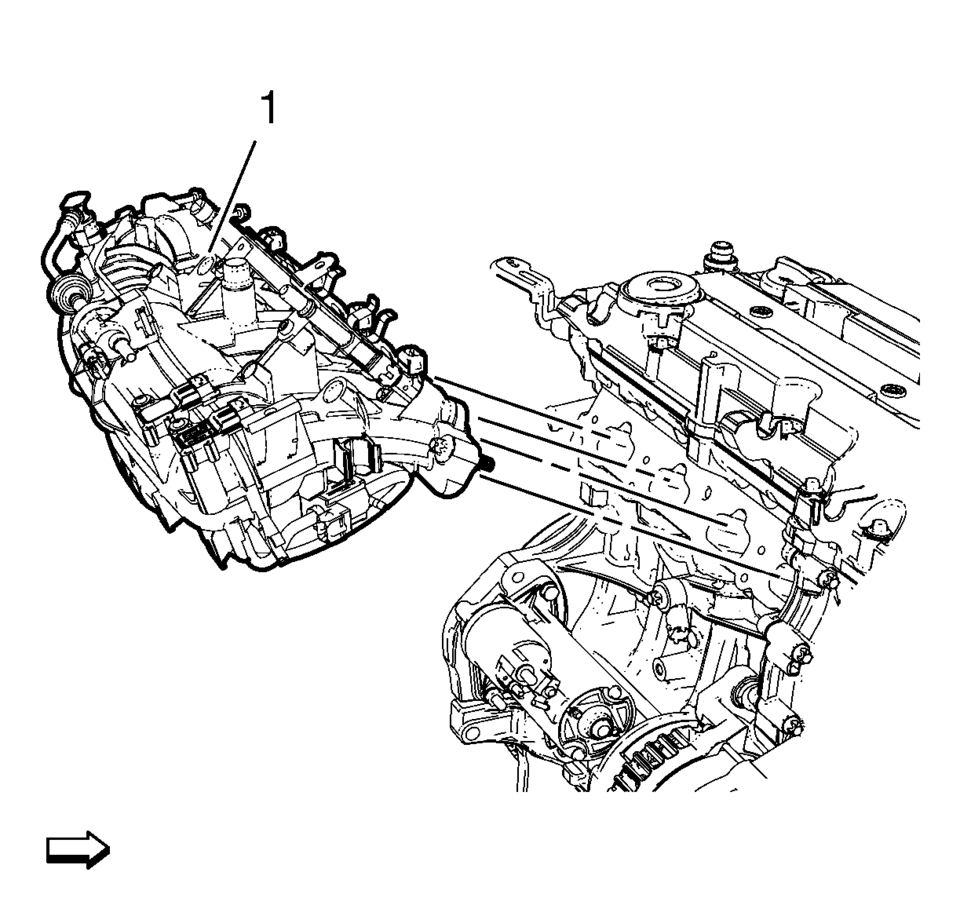

- Remove the intake manifold (1) and the intake manifold gasket.
- Transfer parts from intake manifold as necessary. Refer to Intake Manifold
Disassemble and Intake Manifold Assemble.
- Installation Procedure
-
- Clean the sealing surfaces.
- Install the intake manifold (1) along with a NEW intake manifold gasket.
Caution:
Refer to Fastener Caution.
- Install the 6 intake manifold bolts (1) and tighten to 20 Y (15 lb ft)
.
- Connect the fuel ventilation pipe (2) to the evaporative emission canister
purge solenoid valve.
- Clip in the fuel ventilation pipe to the retainer clip (1).
- Connect the fuel feed pipe (4) to the injector rail.
- Clip in the fuel feed pipe to the retainer clip (1).
- Connect the brake booster vacuum pipe (3) to the intake manifold.
- Connect the turbocharger wastegate regulator solenoid valve wiring harness
plug (3).
- Clip in the engine control module wiring harness to 2 intake manifold
retainer clips (2) and from 2 fuel injection rail retainer clips (1).
- Clip in the engine control module wiring harness to the camshaft cover.
- Connect the 4 fuel injector wiring harness plugs (4).
- Connect the manifold absolute pressure sensor wiring harness plug (1)
.
- Disconnect the evaporative emission canister purge solenoid valve wiring
harness plug (2).
- Connect the PCV hose (3).
- Connect the throttle body wiring harness plug (1).
- Install the charge air cooler outlet air hose to the throttle body.
Refer to Charge Air Cooler Outlet Air Hose Replacement.
- Raise and support the vehicle.
- Clip in the heater outlet hose to retainer clip (1).
- Clip in the engine control module wiring harness to 2 retainer clips (2).
- Install the engine sight shield.
- Connect the battery negative cable. Refer to Battery Negative Cable
Disconnection and Connection.
