Chevrolet Sonic Owner's Manual: Interior Lighting
Dome Lamps

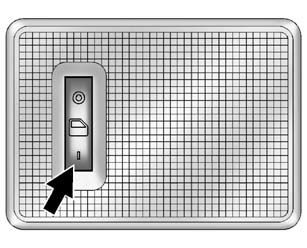

The dome lamp controls are in the headliner above the rear seats.
: Press to turn the lamps off, even
when a door is open.
: When the button is returned to
the middle position, the lamps turn on automatically when a door is opened.
: Press to turn on the dome lamps.
Reading Lamps

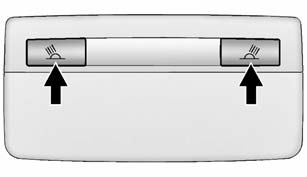

For vehicles with front reading lamps, they are in the overhead console.
or
: Press to turn each lamp on or off.
For more information about interior lighting, see Instrument Panel Illumination Control or Courtesy Lamps.
