Chevrolet Sonic Repair Manual: Liftgate Replacement



Liftgate Replacement

Callout

Component Name

Preliminary Procedures

  1. Disconnect the electrical connectors.
  2. Disconnect the liftgate struts. Refer to Liftgate Strut Replacement.
  3. Remove the body lock pillar upper trim. Refer to Body Lock Pillar Upper Trim Panel Replacement.

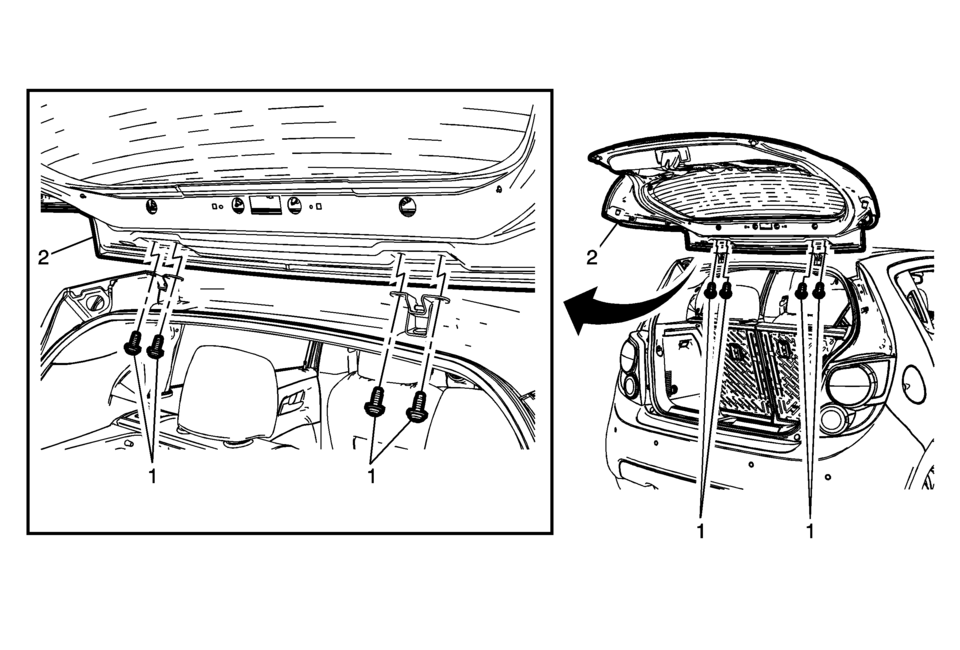

1

Liftgate Hinge Bolt (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


22?€‰Y (16?€‰lb?€‰ft)

2

Liftgate

Procedure

  1. Transfer parts as needed.
  2. Adjust the liftgate if needed. Refer to Liftgate Adjustment.
