Chevrolet Sonic Repair Manual: Liftgate Weatherstrip Replacement
|

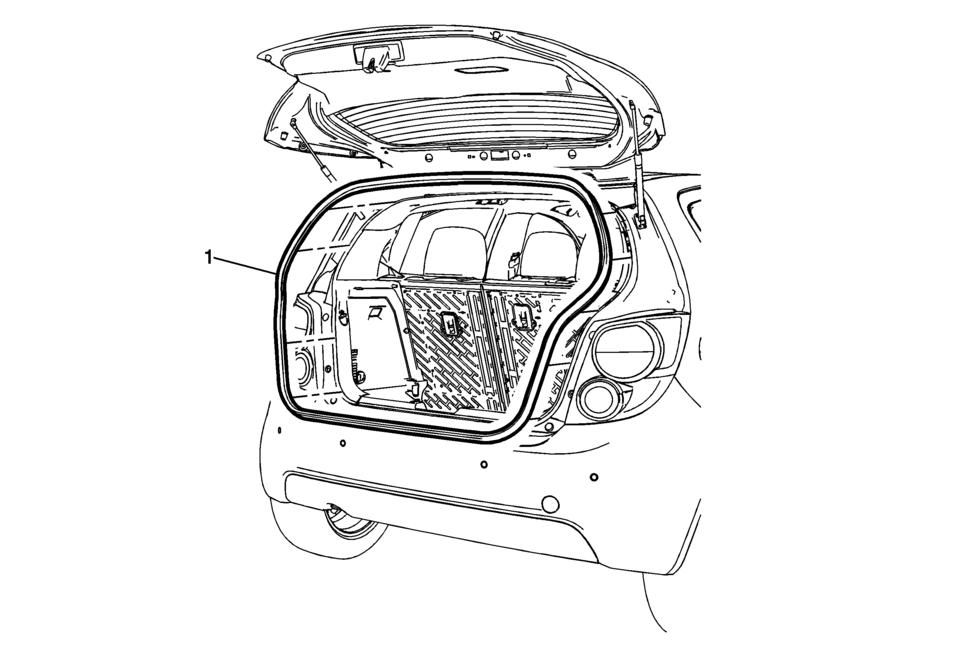

Callout |
Component Name |
|---|---|
|
1 |
Liftgate Weatherstrip Procedure
Clean the area where the seal will be mounted. Use a suitable solvent with a mixture of 50?€‰percent isopropyl alcohol and 50?€‰percent water by volume, or high-flash naphtha. |
