Chevrolet Sonic Repair Manual: Manifold Absolute Pressure Sensor Replacement
|

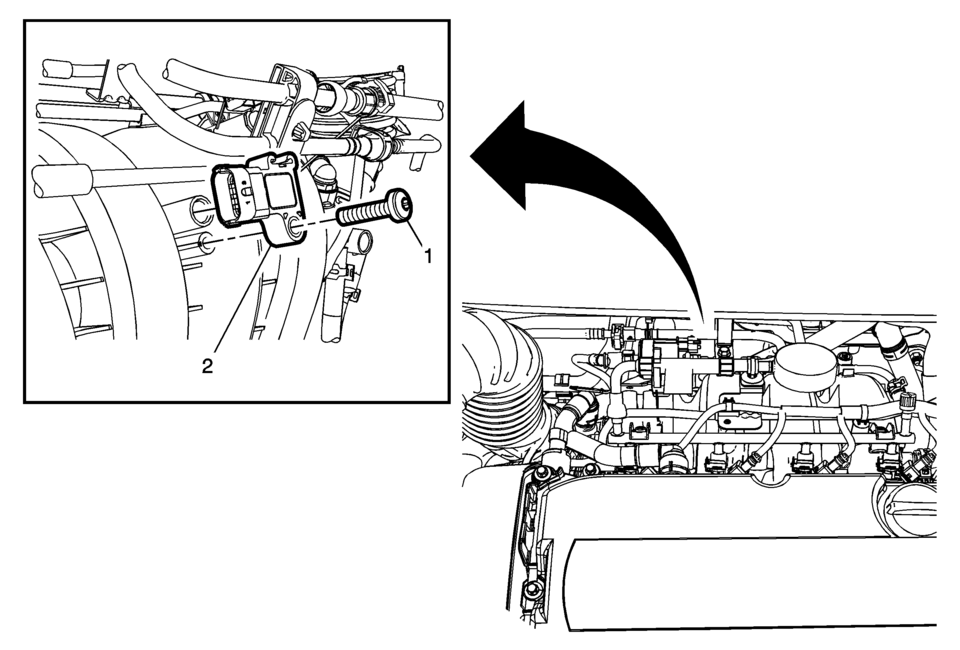

Callout |
Component Name |
|---|---|
|
1 |
Manifold Absolute Pressure Sensor Fastener Caution: Refer to Fastener Caution
6 Y (54 lb in) |
|
2 |
Manifold Absolute Pressure Sensor Procedure
Disconnect the electrical wiring harness connector from the Manifold Absolute Pressure Sensor. |
