Chevrolet Sonic Repair Manual: Oil Pump Cleaning and Inspection

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Lubrication / Oil Pump / Oil Pump Cleaning and Inspection

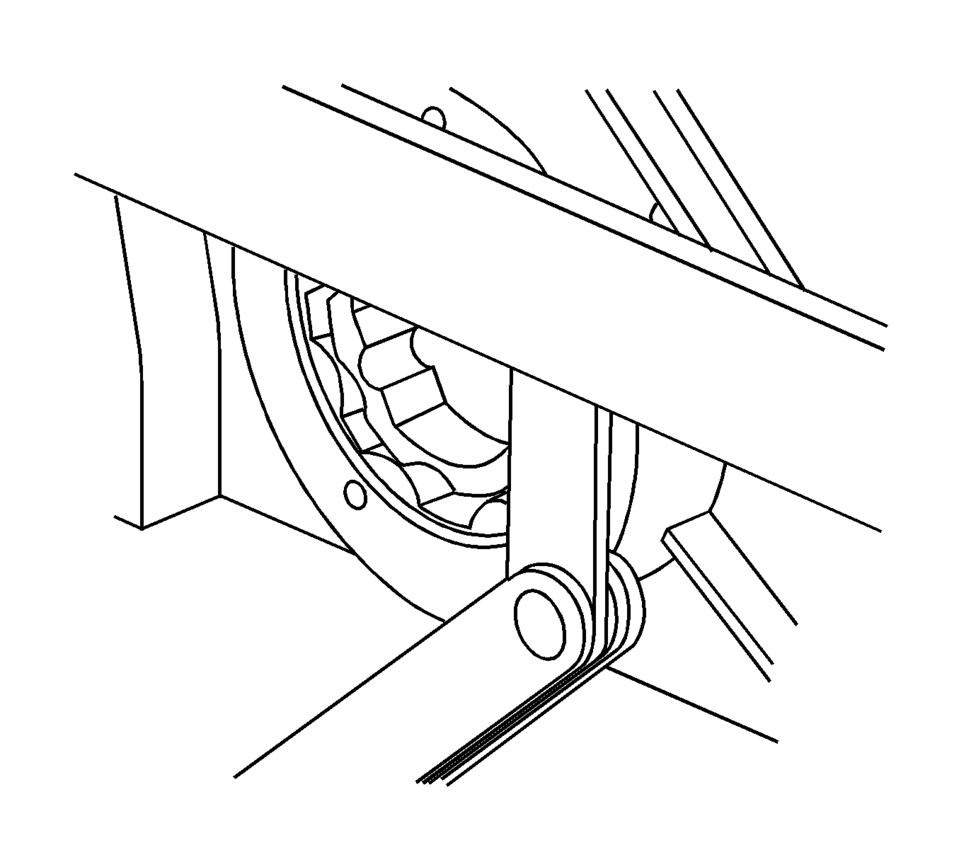

    Remove the external rotor with the internal rotor.
  1. Remove the external rotor with the internal rotor.
  2. Visually inspect the components.
  3. Install the external and the internal rotors.
  4. Inspect the axial clearance of the rotors in respect to the control unit housing upper edge.

    Specifications


    Permissible measurement is 0.02?E.058 mm (0.00079?E.00228 in).

Engine Front Cover with Oil Pump Replacement
Removal Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection. Set the engine to TDC. Refer to Camshaft Timing Chain Inspec ...

Oil Pump Replacement
Removal Procedure Remove the engine front cover. Refer to Engine Front Cover with Oil Pump Replacement. Remove the 8 oil pump cover bolts (1). Remove t ...
