Callout |
Component Name |
|---|---|
|
Preliminary Procedure

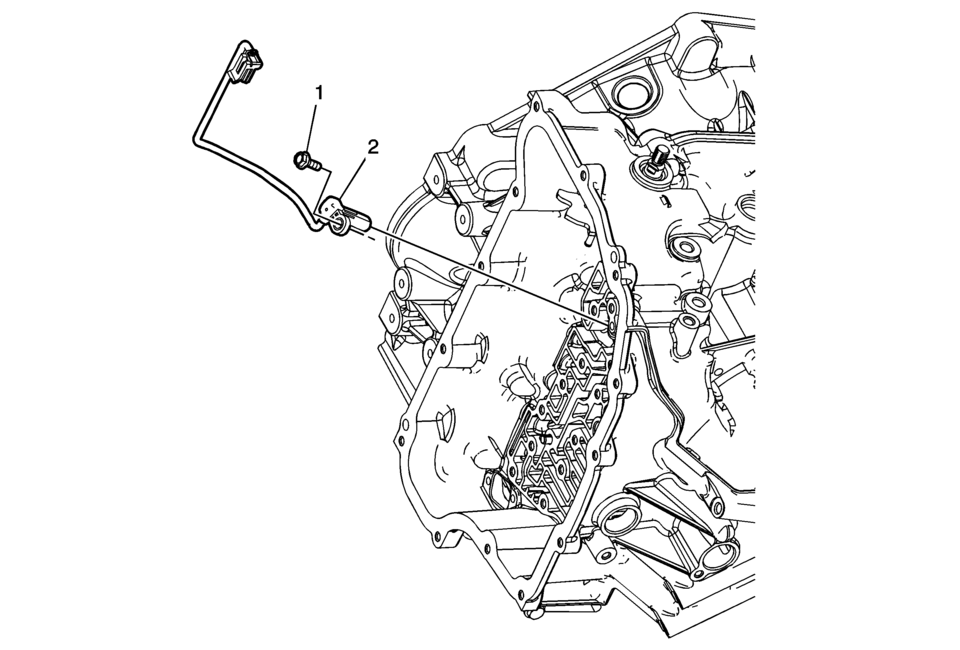

Remove the control valve body. Refer to Control Valve Body Replacement. |
|
|
1 |
Output Speed Sensor Bolt M6 x 18 Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
|
2 |
Output Speed Sensor Procedure
Perform the transmission adaptive values learn procedure. Refer to Transmission Adaptive Values Learn. |
Neutral - Engine Running (Gen 2)
Park - Engine Running (Gen 1)Rear Compartment Lid Lock Cylinder Coding
The rear compartment lid lock cylinder uses 7 of the 7 cut positions. The tumbler
positions are staggered from side to side, 4 on one side and 3 on the other, are
not self-retaining, and are not snap in.
Note: All lock cylinders for side milled keys have right and left
tum ...
Tread Wear Indicators Description
The original equipment tires have tread wear indicators that show when you should
replace the tires.
The location of these indicators are at 60 degree intervals around the outer
diameter of the tire. The indicators appear as a 6 mm (0.25 in) wide band when the
tire trea ...
Heater Outlet Hose Replacement (LDE, LUW)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Disengage the heater outlet hose quick connect clip (1) at the heater ...
