Chevrolet Sonic Repair Manual: Positive Crankcase Ventilation Pipe Installation

Chevrolet Sonic Repair Manual / Powertrain / Engine / Emissions / PCV / Positive Crankcase Ventilation Pipe Installation

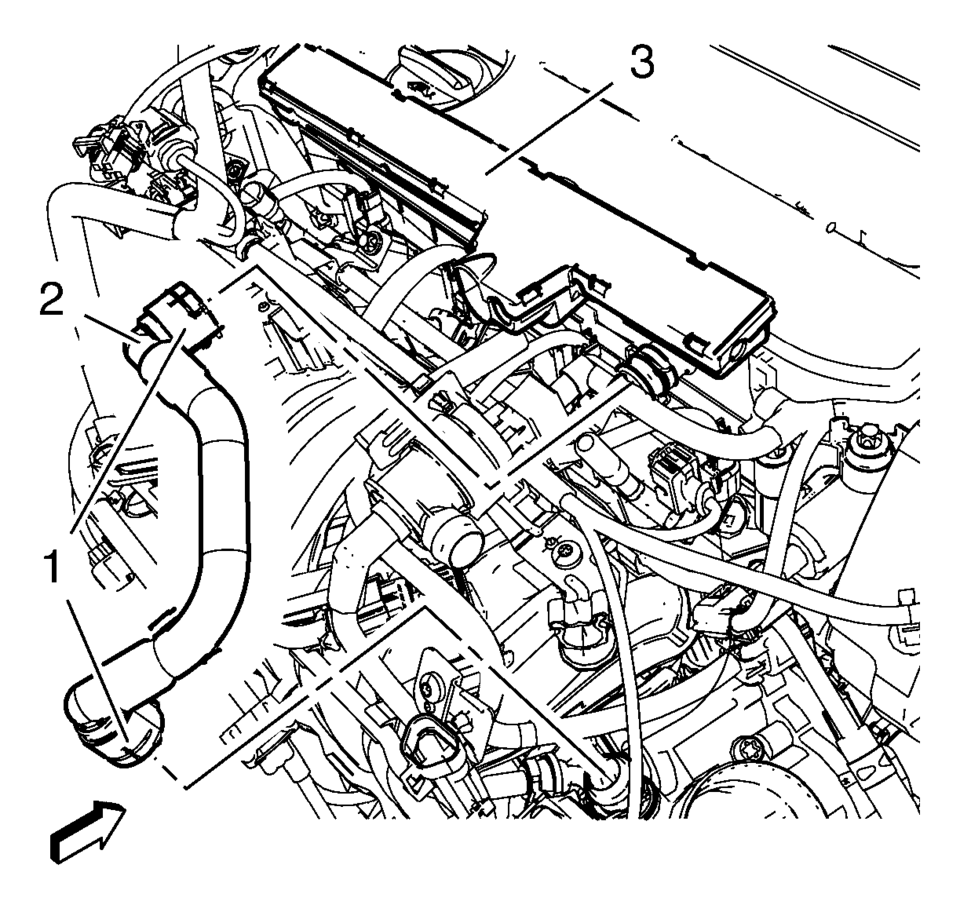

    Install the positive crankcase ventilation tube (2).
  1. Install the positive crankcase ventilation tube (2).
  2. Connect the 2 positive crankcase ventilation tube connectors (1).
  3. Clip in the ECM wiring harness guide (3) to the cylinder head cover.
Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
Removal Procedure Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement. Open the 2 positive crankcase ventilation pipe retainer clips ...

Positive Crankcase Ventilation Pipe Removal
Open the 2 positive crankcase ventilation pipe retainer clips (2) and (3). Note: Move retainer clamp (1) in direction of the arrow. Remove the positi ...
