Chevrolet Sonic Repair Manual: Power Steering Pump Belt Installation
Special Tools
EN-50098 Belt Installer
For equivalent regional tools, refer to Special Tools.

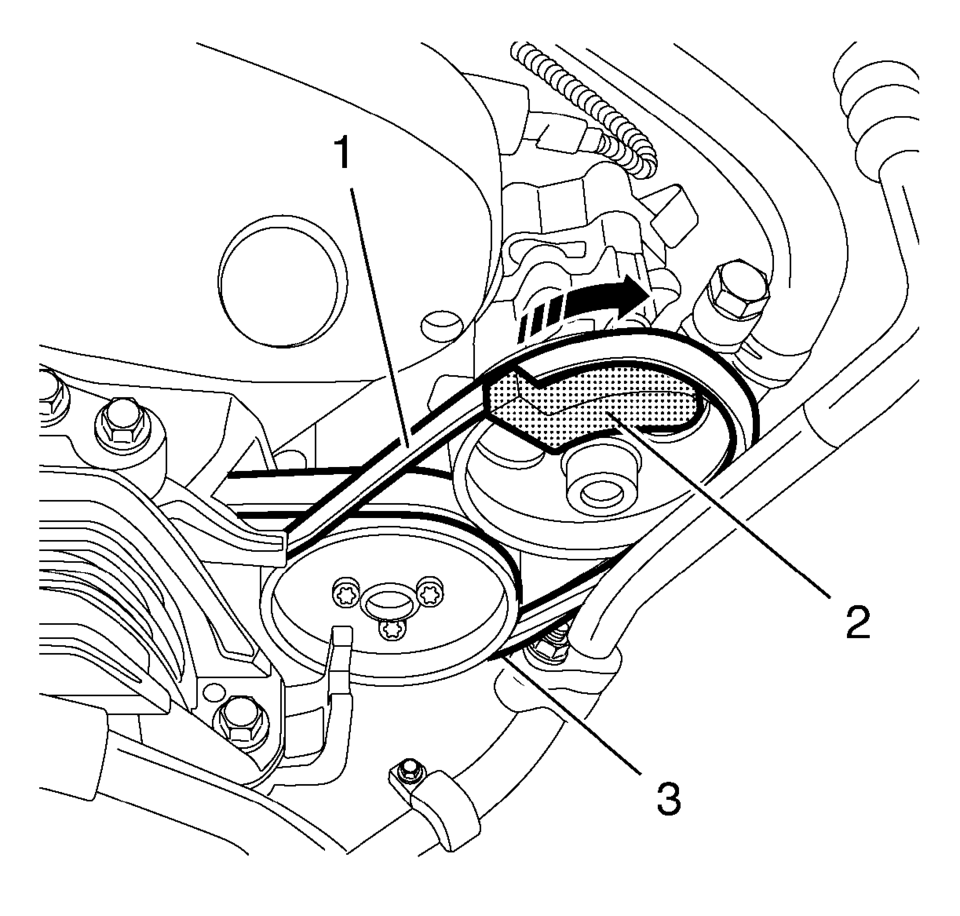

- Install EN-50098 installer (2) and a NEW power steering pump belt (1) to water pump pulley and power steering pump pulley.
- Turn the engine slowly clockwise at the crankshaft balancer bolt.
- During turn the engine take care of the proper installation of the power steering pump belt to the water pump pulley (3).
- Remove the EN-50098 installer (2).
- Check the power steering pump belt is installed clearly.
Drive Belt Replacement
Special Tools
EN-48488 Holding Wrench
EN-955 Locking Pin
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Remove the right front wheelhouse liner extens ...
Power Steering Pump Belt Removal
Caution: Do not use belt dressing on the drive belt. Belt dressing
causes the breakdown of the composition of the drive belt. Failure to follow
this recommendation will damage the ...
