Chevrolet Sonic Repair Manual: Radiator Grille Opening Cover Replacement (Upper Grille Cover)

Chevrolet Sonic Repair Manual / Body / Body Exterior / Front Grille / Radiator Grille Opening Cover Replacement (Upper Grille Cover)

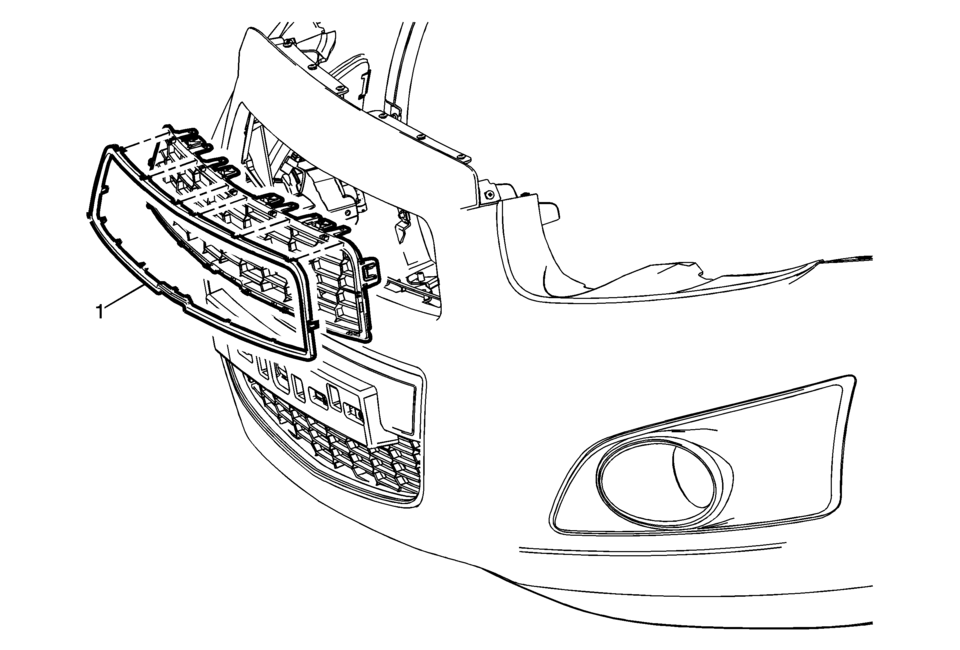

Radiator Grille Opening Cover Replacement

Callout

Component Name

Preliminary Procedure

Remove the radiator upper grille. Refer to Front Upper Grille Replacement.

1

Radiator Grille Opening Cover (Upper)

Procedure

Release the locking tabs securing the radiator opening grille cover to the radiator upper grille and remove.
