Chevrolet Sonic Repair Manual: Radiator Outlet Hose Replacement (LDE LUW)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Radiator / Radiator Outlet Hose Replacement (LDE LUW)

Special Tools

BO-38185 Hose Clamp Pliers

For equivalent regional tools, Refer to Special Tools.

Removal Procedure
  1. Drain the cooling system. Refer to Cooling System Draining and Filling.


  2. Remove the radiator outlet hose clamp (1) at the engine using BO-38185 Hose Clamp Pliers .
  3. Remove the radiator outlet hose (2) from the engine.
  4. iiiii

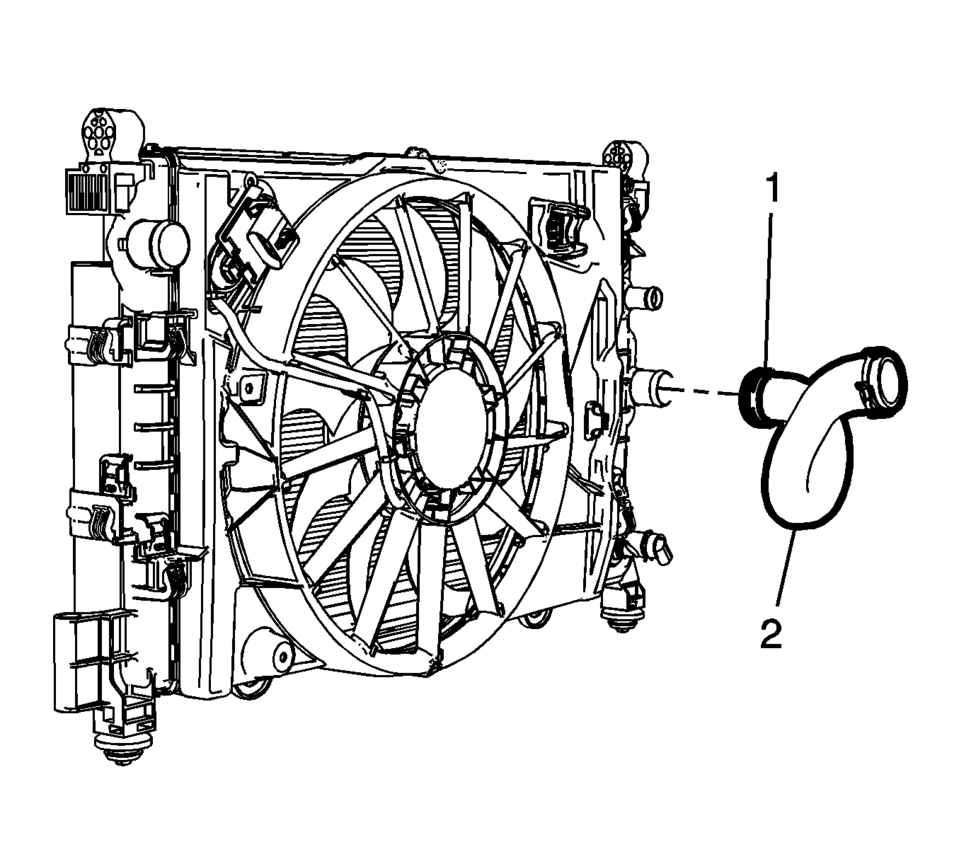

  5. Remove the radiator outlet hose clamp (1) at the radiator using BO-38185 Hose Clamp Pliers .
  6. Remove the radiator outlet hose (2) from the radiator.
  7. Remove the radiator outlet hose from the vehicle.
Installation Procedure

    Install the radiator outlet hose to the vehicle.iiiii
  1. Install the radiator outlet hose to the vehicle.
  2. Install the radiator outlet hose (2) to the radiator.
  3. Install the radiator outlet hose clamp (1) at the radiator using BO-38185 Hose Clamp Pliers .


  4. Install the radiator outlet hose (2) to the engine.
  5. Install the radiator outlet hose clamp (1) at the engine using BO-38185 Hose Clamp Pliers .
  6. Fill the cooling system. Refer to Cooling System Draining and Filling.
