Chevrolet Sonic Repair Manual: Radio Antenna Base Replacement
|

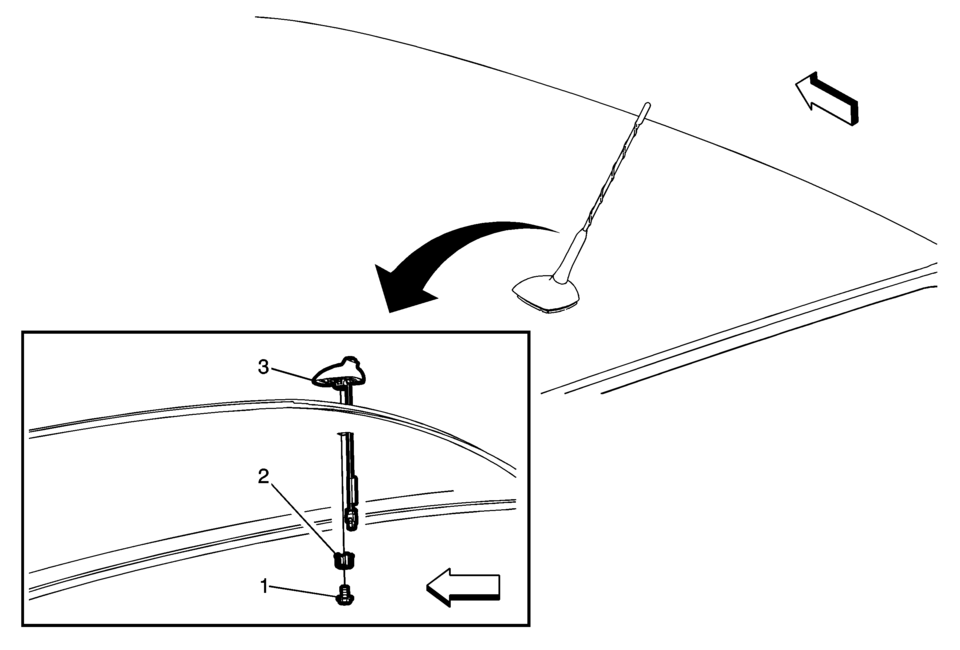

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Lower the rear of the headlining trim panel. Refer to Headlining Trim Panel Replacement. |
|
|
1 |
Radio Antenna Base Fastener Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
|
2 |
Radio Antenna Base Retainer |
|
3 |
Radio Antenna Base Assembly Procedure
Disconnect the electrical connectors. |
Antenna
...
Radio Antenna Replacement
Radio Antenna Replacement
Callout
Component Name
1
Radio Antenna
Procedure
Rotate the mast counterclockwise in or ...
