Chevrolet Sonic Repair Manual: Radio Antenna Replacement
|
Callout |
Component Name |
|---|---|
|
1 |

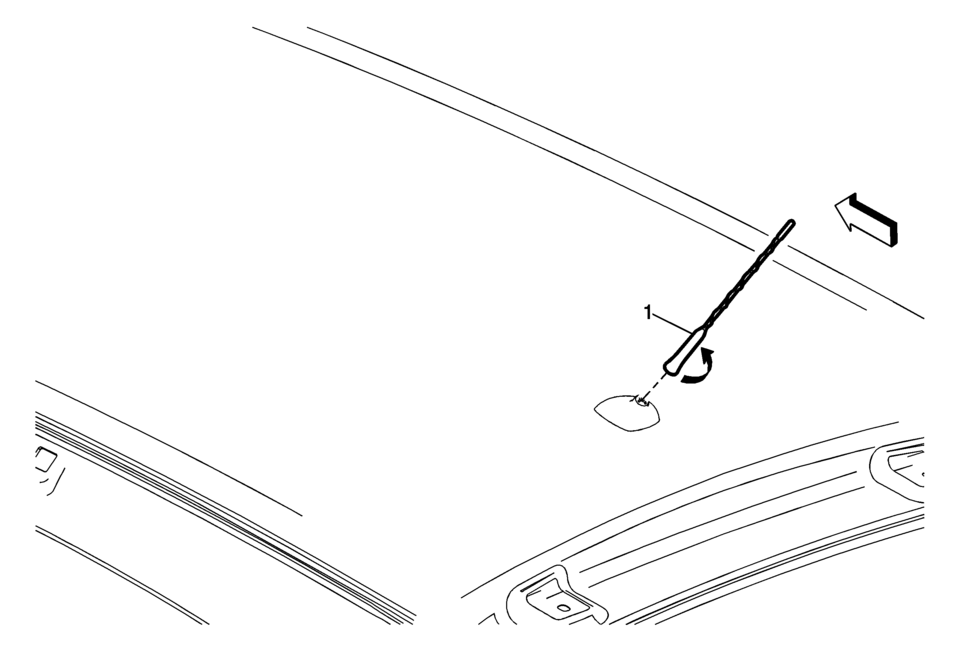

Radio Antenna Procedure
Rotate the mast counterclockwise in order to release the mast from the antenna base. |
